Description
9S4PU4-P4

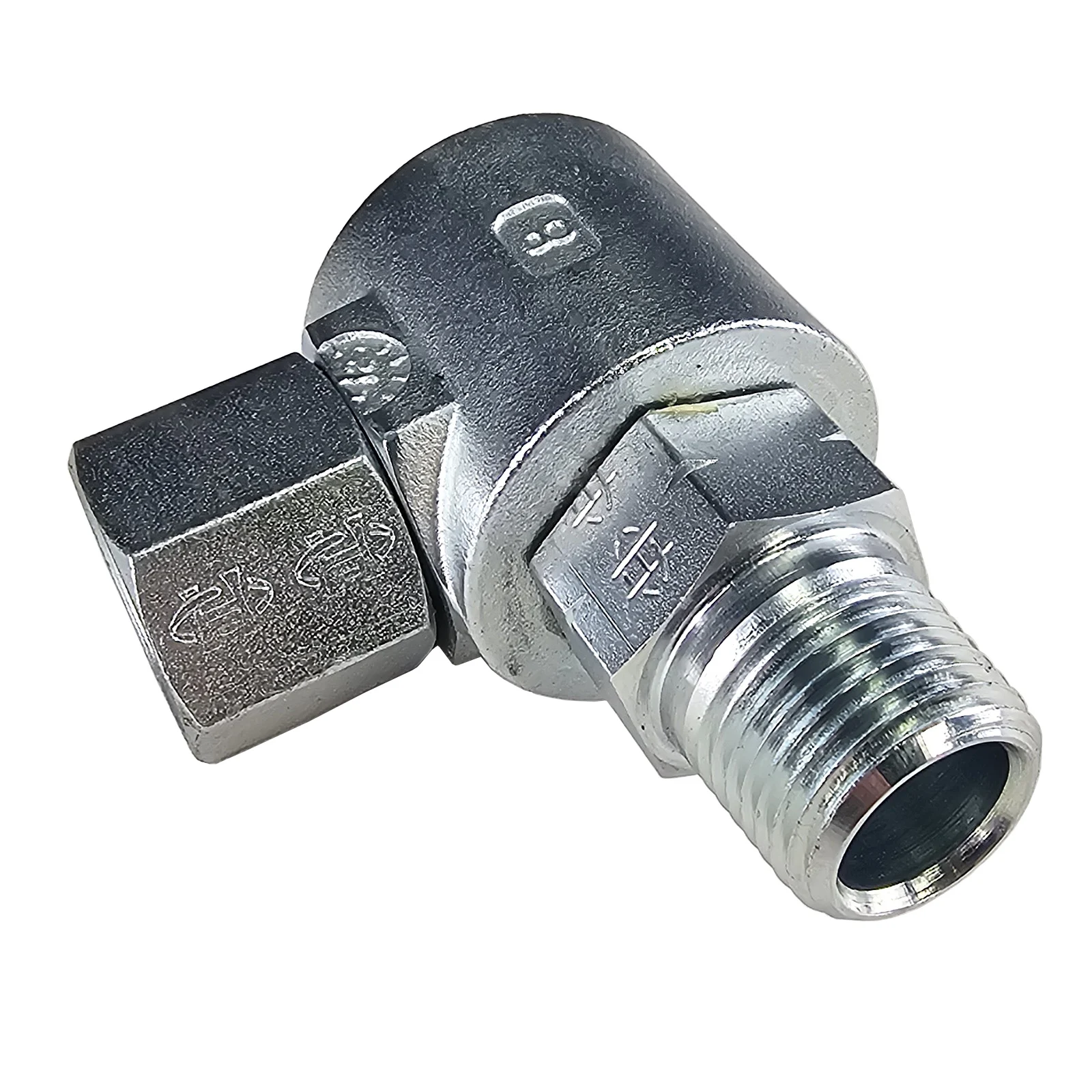

90 Degree Swivel fluid power component configured with a -4 (1/4?) PU-Female Pipe Union barrel connector and -4 (1/4?) P-Male Pipe stem connector.
Specifications: Weight: 0.33 lbs Part Number: 9S4PU4-P4 Barrel Connector: 4 (1/4″) Female Pipe Stem Connector: 4 (1/4″) Male PipeT1: 1/4-18T2: 1/4-18 A: 2.24B: 1.52C: 1.55 D: 1.17H Hex: 0.75 J Hex: 0.75 L Hex: 0.75 K Diameter: 0.75 Vacuum: 29.5 in./Hg Temperature Range: -30°F to 250°F Max Working Pressure: 5,000 PSI
