Description
1″ Fire Hose Nozzle For Fire & Industrial Applications

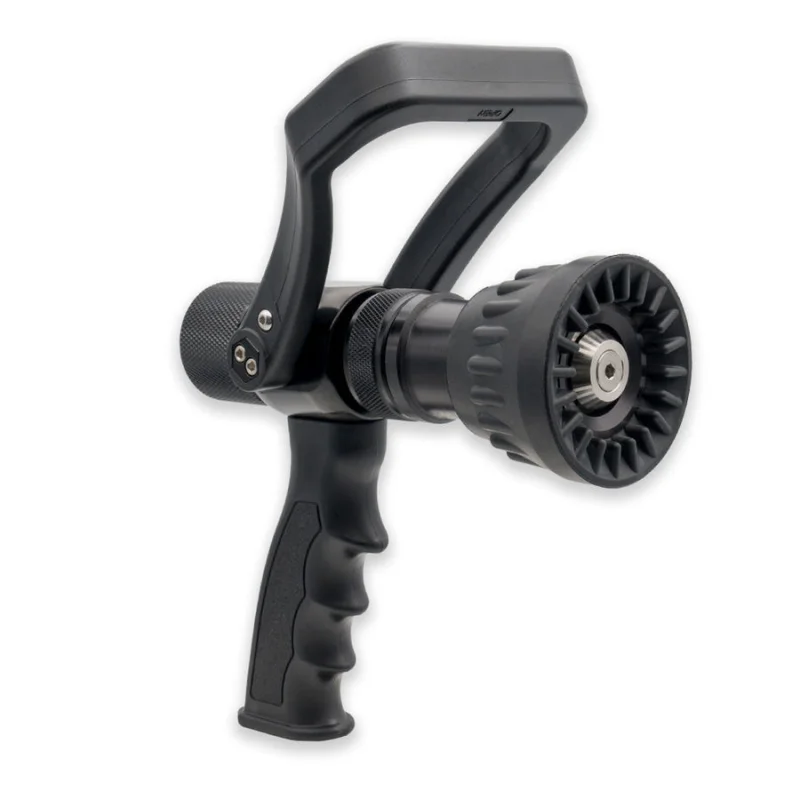

The 1″ 30 gallon per minute fire hose nozzle is built from anodized aluminum featuring a top bale shut off, female swivel inlet, universal pistol grip, and 30 gallon per minute nozzle tip. Use this nozzle for fire or heavy duty industrial applications. Pistol grip fire hose nozzles are easy to use, comfortable to handle, and fully adjustable to achieve straight stream or fog spray patterns.
Specifications
- Inlet Size – 1″ Inch
- Inlet Threads – Choose 1″ NH (NST) or 1″ NPSH Female Swivel
- Waterway Size – 1″ Inch
- Service Flow Rate – 30 Gallons Per Minute Constant Flow @ 100 PSI.
- Shut Off – Ball Valve Bale Shut Off / Tip Twist Shut Off
- Spray Pattern – Adjustable Straight Stream & Fog
- Material – E-Lite Anodized Aluminum (Hard-Coated) With Brass Internal Parts & Rubber Bumper
- Weight – 3.00 LBS
- Width -8 Inches
- Height -10 Inches
- Depth – 5 Inches
Wide Applications For Fire Hose Nozzles
Fire hose nozzles are used in a wide variety of applications. The industrial grade strength of fire hose nozzles make it an attractive tool to keep in municipal departments, industrial job sites, government facilities, residential projects, and more.
- Fire Departments(Municipal Structural Volunteer Forestry)
- Heavy Industrial Projects(IrrigationConstruction Chemical Oil Manufacturing)
- Residential & Commercial(Fire Hydrants Water Pumps Drainage Standpipes Testing)
- Special Industry(Marine Shipping Mining Military DrillingDecontamination)
- Government(Military US Coast Guard Infrastructure National Parks)
Differences Between Brass & Aluminum Nozzles
Generally speaking both brass and aluminum fire hose nozzles are highly durable and have an excellent lifespan. The main difference is weight with aluminum being about half the weight and stronger than brass. Brass may be used for special applications where maximum anti-corrosion is required such as on marine or energy applications. Extruded anodized aluminum also has high anti-corrosive properties but brass is still the industry standards today, whether justified on paper or not.
Compatibility Of Fire Hose Nozzles
Fire hose nozzles are universal and can be used with any type of hose coupled with NH / NST (National Hose / National Standard Thread), NPSH (National Pipe Straight Hose), NPT (National Pipe Tapered), or even camlock hoses with the appropriate adapters. Nozzles are usuallyequipped with a female swivel fitting so it can screw onto the threaded male end of any discharge hose. Use fire hose nozzles with all types of discharge hoses including but not limited to woven polyester, certified fire hoses, rubber fire hoses, rigid discharge hoses, and more.
