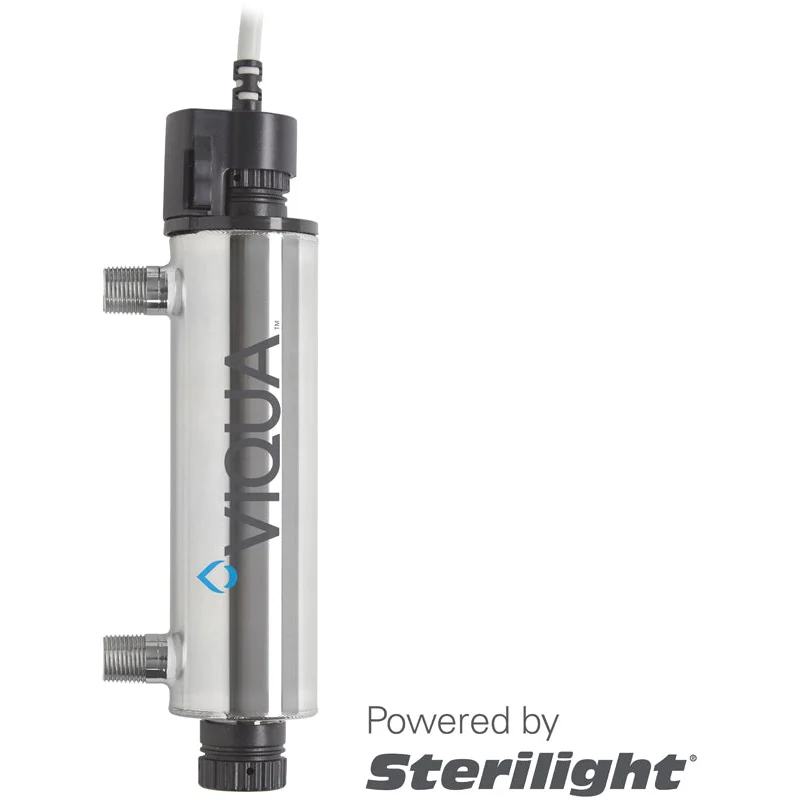

1 GPM | Sterilight Point of Use UV System | VIQUA TAP

Original price was: $149.00.Current price is: $37.25.

SKU: F302012241757 Category:

Description

VIQUA TAP Series Ultraviolet Disinfection Systems are specifically designed for point-of-use applications where microbiological control is required. Ultraviolet water treatment controls bacteria, virus and protozoan cyst (specifically giardia lamblia and cryptosporidium). VIQUA TAP series are installed at a single tap (or faucet) within a home, cottage or business. TAP systems are also suitable for fountains or low-flow applications (1-4 gpm).

Benefits of UV disinfection

  • 99.99% destruction of bacteria, virus & protozoan cysts (Giardia Lamblia & Cryptosporidium) at rated flow.
  • Chemical-free
  • Easy to install and service
  • Economical and energy efficient

VIQUA TAP Series VT1 replaces Sterilight Copper Series SC1, which is now obsolete by the manufacturer.

Specifications for VIQUA VT1

AMI Part Number: VT1
Recommended Flow Rate*: 1 GPM (4 LPM)
Voltage: N. America (NEMA P-15)
Power Consumption: 13W
Connection: 1/2″ MNPT
3/8″ FNPT Combo
Chamber Dimensions: 2.5″ Dia. x 12.5″L
Lamp Life: 9,000 Hours
Lamp Cord: Approximately 5 feet
Max. Operating Pressure: 125 psi (8.62 bar)
Ambient Temperature: 36-104F (2-40C)

*Factory recommended flow rate is calculated at a UV dose of 30 mj/cm. See manufacturer’s specification sheet for flow rates at different doses.

What Size of UV
System Do I Need?

Choose a UV System with a recommended flow that meets or exceeds your fixture’s flow rate. When in doubt, always choose the next size up.

Don’t know your flow rate?

Visit our Flow Rate & Sizing Guidefor help.

Replacement Parts for VIQUA VT1

S212RL UV Lamp Only for VIQUA VT1
QS-212 UV Quartz Sleeve Only for VIQUA VT1
BA-VT Controller Kit for VIQUA Tap Series
410867 Lamp O-Ring for VIQUA UV
RN-001 Retaining Nut for VIQUA UV
4109958-R 2.5″ Mounting Brackets for VIQUA UV
270276-R Lamp Connector Base for VIQUA UV
SP008 Lamp Connector Spring for VIQUA UV
