Description

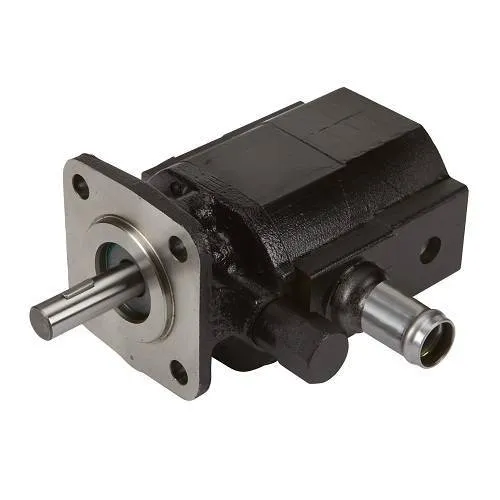

11 GPM Two Stage Gear Pump w/ 1″ Pipe Inlet Porting
This product is a Hi-Lo cast iron hydraulic gear pump with max pressures of 900 PSI for the low pressure and 3000 PSI for the high pressure pump. Typical applications are log splitters and presses, where alternating low and high pressures are required to move a cylinder.
Product Features:
- 6 HP
- 11 GPM
- 3000 PSI
- 3600RPM
- 4 Bolt Mounting
- 1″ Barb Inlet Port
- 1/2″ NPT Outlet Port
- Clockwise Rotation
- 1/2″ Shaft uses the 1/8th in. Straight Key
- Recommended cylinder bore size is 4″
- Shaft Diameter X Length is 1/2″ X 1-1/2″
Alternate product lookup:
AP-HL-11
