Description

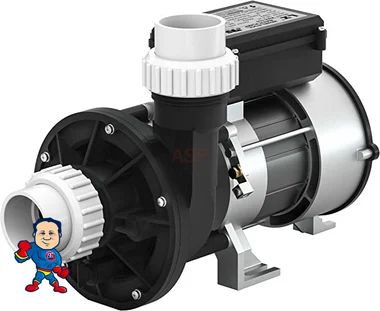

This Item is a 1.0 Horse Power 9.0 Amp (1) Speed 48 Frame Complete 1 1/2″ Side Discharge Pump found in some Hot Tubs. It may have a Vendor Code 3536 LX Brand Pump. These pumps usually have the part number 1431501-03 on the label for a 3536 Version.
This is a link for the seal kit for this pump: Pump Seal Kit for 1431501-03 LX Pump
This is a link for the wear ring of this pump: Wear Ring Watkins LX 1431501-03 Wet End Only
This is a link for the complete wet end of this pump: Complete Wet End 1431501-03 for LX Pump
For the complete pump click this link: 1431501-03 LX Complete Pump
| Manufacturer | Lingxiao-Pump |
| Pump Model | WBC |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 115v |
| Suction Style | Center |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2″ |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2″ |
| Motor Amperage/Wattage | 9.0A |
If your original Wet End has a Bleeder Barb and the heads of the Bleeder Screws in your old wet end have a spot for a flat screw driver you will need a new bleeder barb… If the original has a wing nut style you already have the newer style bleeder barb and will only need a new one if your original one breaks..
Click this link for the new Style Bleeder Barb: Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads
For the Bleeder Barb That fits this pump click Either of these links one is a 1/4″ and one is a 1/2″:
Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads
Pump Bleeder Barb, Watkins, Wavemaster, LX, 1/2″ Barb x 1/4″Mpt
