Description

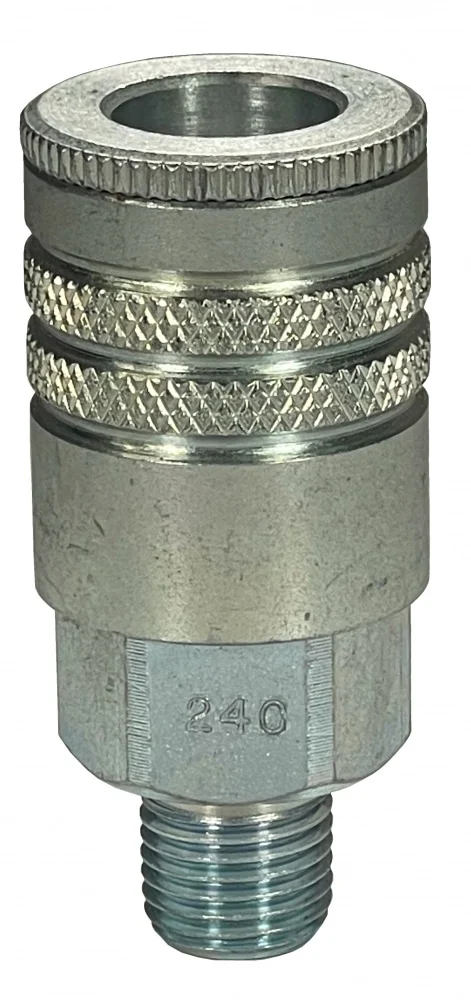

20 Series Quick Couplers (pneumatic, air) up to 300 psi connect with Industrial Interchange Nipples. Couplers are manual sleeve, single shut-off couplers that mate with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards. 20 Series couplers have steel, tubular-style valves that deliver high flow with minimal pressure drop. An integral sleeve guard helps to resist accidental disconnection when in use. Couplers are available in a range of sizes, materials, and fitting ends to be versatile for use in a wide variety of applications with air or fluid pressures up to 300 psi.
Specifications
Thread: 1/4″ MNPT
Body Size: 3/8″
Maximum Operating Pressure: 300 PSI
Temperature Min and Max: -40°F to 250°F
Seal Type: Nitrile
