4" x 40" Ultrafiltration Membrane | Flush Cut Desal Style | FRP Wrapped | Polyethersulfone (PES) UF | 10,000 MWCO

4″ x 40″ Ultrafiltration Membrane | Flush Cut Desal Style | FRP Wrapped | Polyethersulfone (PES) UF | 10,000 MWCO

Original price was: $147.00.Current price is: $36.75.

SKU: F302012242036 Category:

Description

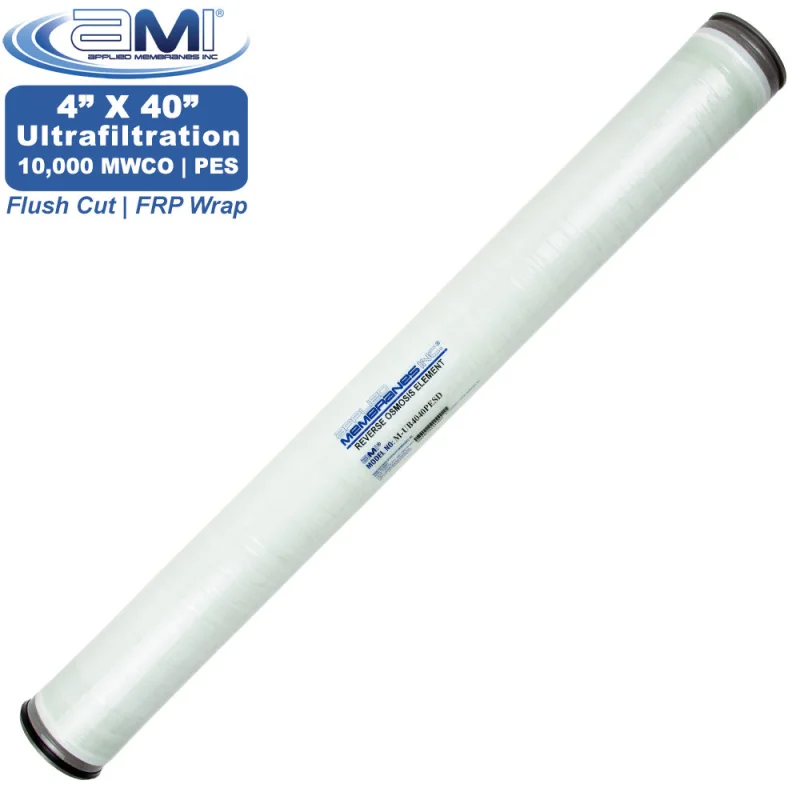

4″ x 40″ Ultrafiltration Membrane (UF Membrane) | Polyethersulfone PES Membrane Elements
“Flush Cut” (Female Ends) | Fiberglass Wrapped

Applied Membranes polyethersulfone (PES) spiral wound ultrafiltration (UF) membrane elements provide removal of fine particles from aqueous solutions to a molecular weight cut-off (MWCO) of 10,000.

AMI UF Membranes are in their ISO 9001:2015 Certified Facility and are 100% Quality and Performance Tested.

Features of Applied Membranes Ultrafiltration PES Membranes:

  • Tolerant to Many Solvents and Oils
  • Absolute Bacteria and Virus Removal
  • Filtration to 10,000 Molecular Weight Cut-Off
  • Low Pressure Requirements For Reduced Operating Costs and Power Consumption
  • High Flux for High Flow Rates
  • Robust Materials and Construction for Long Life
  • Durable with good cleanability for long element life
  • Manufactured in our ISO 9001:2015 Certified Facilities
  • 100% Performance and Quality Tested
  • Backed by our Experienced Technical Support Staff
  • High Quality for Consistent and Reliable Performance
  • Uses the most advanced membrane film technology and manufacturing processes

M-U4040PESD Specifications

AMI Part Number: M-U4040PESD
Membrane Size (Nominal): 4×40
Membrane Dimensions: 3.9″Dia. x 40″L
Molecular Weight Cut-Off (MWCO) 10,000
For Housing: Standard 4″ x 40″
Outer Wrap: FRP Wrapped
Membrane Type: Polyethersulfone (PES) Ultrafiltration
Element Type: Spiral Wound
Maximum Operating Pressure: 150 psig (10 bar) @ 77F (25C)
Maximum Feed Flow: 20 gpm
Maximum Operating Temperature: 140F (60C) at 100 psi
Feed water pH Range: 2-11 (continuous)
Cleaning pH Range: 1-13 (30 minutes)
End Style: Female PWT (Flush Cut Style)
Manufacturer: Applied Membranes, Inc.
Country of Manufacture: United States (USA)

Applications for Polyethersulfone Ultrafiltration Membrane Elements:

  • Absolute bacteria and virus removal from surface waters, beverage and liquid food processing and by product streams
  • Applications requiring tolerance to solvents
  • Treatment of oil, food, and pharmaceutical streams that require resistance to many esters and aromatics
  • Recovery of proteins, gelatin, enzymes, whey protein

Physical Dimensions of M-U4040PESD:

Total Length (A):

40 In. (1016 mm)

Diameter (B):

3.9 In. (99 mm)

PWT ID (C):

0.625 In. (15.9 mm)

Replacement Compatibility for AMI 4 X 40 Flush-Cut UF Membranes

Applied Membranes M-U4040PESD membrane elements are flush-cut (Desal Osmonics style) with female product water tube ends, and are designed to be used as direct replacement for 4×40 size spiral wound polyethersulfone ultrafiltration elements with 0.625″ ID female PWT.
