Description
Cross 60 Series Hydraulic Motors
Cross Hydraulic Gear Motor
Cross 60 Series Hydraulic Gear Motors come standard with dual rotation, 1 1/2″ SAE 24 Ports, 1/4″ NPTF drain port, internal check valves, 1 1/4″ straight key shaft, and 250 PSI shaft seal. Options are available in rotation, porting, and shaft. Call store at 1-800-823-4937 and we will get you the Cross Hydraulic Motor you need!

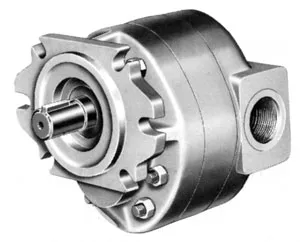

60MH40 DCCSF Cross Hydraulic Motor
- 4.05 cubic inches per revolution
- 3000 PSI (max. rated working pressure
- 3500 PSI (max. shock and surge pressure)
- 108 GPM (max. flow rate)
- 3000 RPM (max. speed)
- 189 HP
- SAE “C” 2 and 4 bolt mounting
- 42 lbs.
Materials:
- die cast aluminum alloy end covers
- hardened steel gears and shafts
- aluminum pump body
Cross Manf.330043
