Description
Details

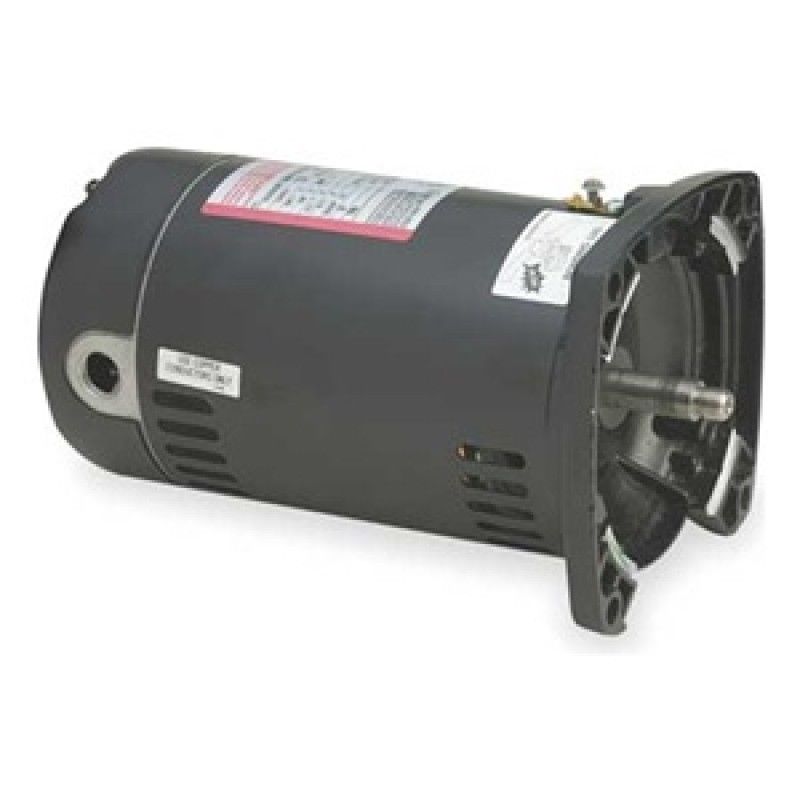

The AO Smith SQ1072 Pool Pump Motor is a Full Rated Square Flange style motor with a 48Y Frame and is a 115V/230V 3/4 Horsepower Motor. Square Flange motors have a square “face” where the motor mounts to the pump with 4 non-threaded bolt holes to attach the pump and a threaded shaft.
Features:
- 3/4 HP – Full Rated
- 115/230 Volts
- 14.8/7.4 amps
- Service Factor: 1.65
- 48Y Frame
- 48Y motor body diameter is 1/2″ smaller than 56Y
- Square Flange (Face)
- 5/8″ Threaded Shaft
- All copper windings
