Description

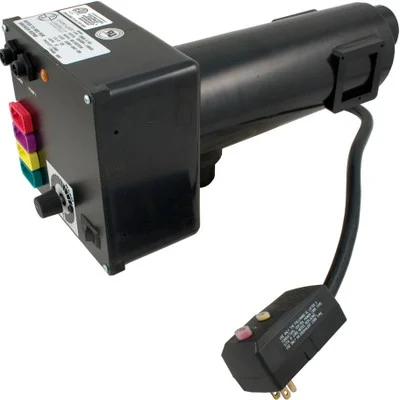

Air Series Control System CS500-A-15A includes a 15A GFCI power cord.
The CS500-A control system operates 1 2-speed pump at 120V and 1blower at 120V only.
Includes a 115v light circuit.
Timer is not included.
| Number Of Appliances | 2 |
| Manufacturer | Hydro-Quip |
| Model | CS500-A |
| Supply Voltage | 115v |
| Heater Wattage | 1.1kW |
| GFCI | Yes |
| Light | 115v |
| Timer | No |
Product Features• New! Molded/colored receptacles• New! Molded/colored cords• Compact universal size• 2-speed pump circuit with 48″ cord• Air blower circuit with 48″ cord• Air buttons & tubing• 115 volt light circuit• Full range thermostat• Thermostat control mode (units less timer)• Corrosion resistant heater housing• Pressure switch controlled heater• Hi limit protected heater• 115 volt ozone circuit with 48″ cord• 1.1kW, 115 volt heater operation• Reversible water flow• Heater ON light• Heater disconnect unions• Detailed operation manual• 1 year parts warranty• UL and ETL recognized
Replaces: 389198 , 58351020 , 611612 , 9206-0 , CS-500-A-15A , CS500-A 15 AMP , HQPCS500A , VOVABDA-11004EO
