Description

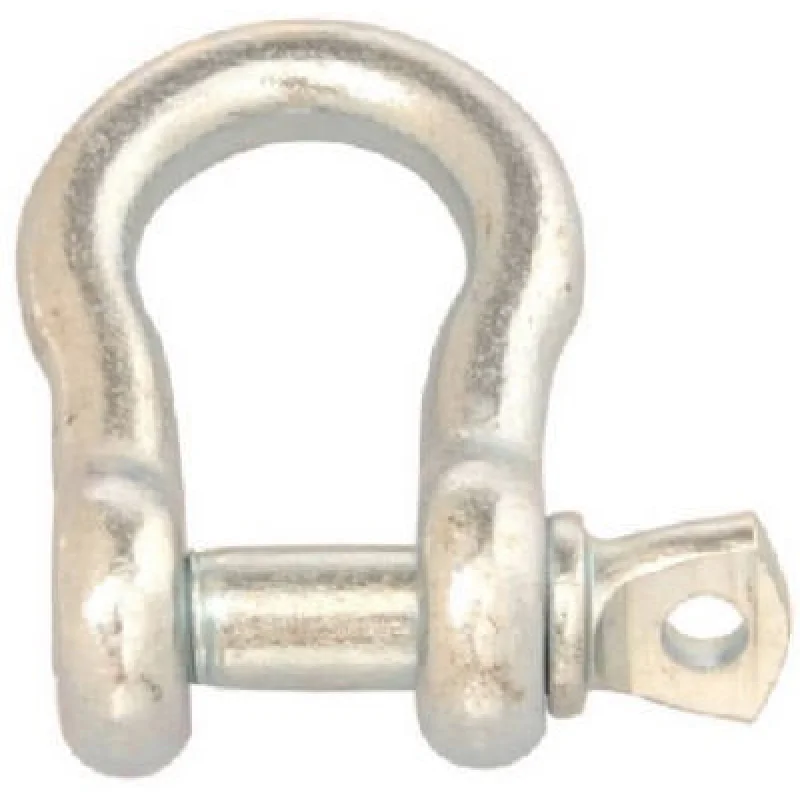

The APEX TOOLS GROUP LLC T9601035 is a 5/8 inch zinc plated screw pin anchor shackle rated for a working load limit (WLL) of 3,000 pounds with a 5-to-1 design factor. This shackle is built for rigging, lifting, and load-securing applications where a reliable, removable connection point is required. The screw pin design allows for tool-free assembly and disassembly in the field, making it a practical choice for rigging crews, contractors, and trade professionals who need to reconfigure lifting setups quickly. Each unit is UPC tagged and sold in a package of 5.
This screw pin anchor shackle is suited for use in construction, marine, industrial, and general rigging environments. The anchor (bow) body shape accommodates loads from multiple directions, making it appropriate for use with slings, chains, hooks, and wire rope in both overhead lifting and pull applications. The zinc plating provides corrosion resistance for both indoor and outdoor use.
Key Features
- 5/8 inch nominal size screw pin anchor shackle
- Working load limit (WLL) of 3,000 pounds
- 5-to-1 design factor for rated load applications
- Zinc plated finish for corrosion resistance
- Screw pin closure for fast field assembly and disassembly
- Sold in a package of 5 units, each UPC tagged
Compatibility
Designed as a standard 5/8 inch screw pin anchor shackle for use with compatible rigging hardware including wire rope, chain, slings, and hooks rated for equivalent or greater working loads.
Installation Notes
Installation and removal should be performed by qualified rigging personnel familiar with applicable ASME B30.26 standards for rigging hardware. Always verify that the WLL of the shackle meets or exceeds the load requirements before use. Never side-load a screw pin shackle beyond the rated capacity, and ensure the screw pin is fully seated and moused when used in sustained or overhead lifting applications. Inspect threads and body for damage, deformation, or corrosion before each use.
Technical Specifications
- Nominal Size: 5/8 inches
- Finish: Zinc Plated
- Closure Type: Screw Pin
- Body Style: Anchor (Bow)
- Working Load Limit (WLL): 3,000 pounds
- Design Factor: 5 to 1
- Package Quantity: 5 units
- Package Weight: 7 pounds
Standard Information
- Brand: APEX TOOLS GROUP LLC
- Manufacturer Part Number: T9601035
