Description
DISCONTINUED

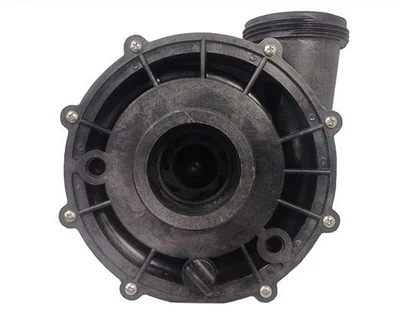

91041624-000 3HP 56 frame wet end with 2 inch plumbing connections for XP2 Gecko spa pump.
This is a 6.1 inch diameter wet end, we also offer the 6.3″ diameter wet ends like 91041915-000.
| Motor Frame | 56 Frame Thru-Bolt- 4″ Spacing |
| Drain Plug Location | 4,6,9 o`clock |
| Suction Auxillary Port | None |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3-1/16″od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2″ |
| Discharge Auxilary Port | None |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3-1/16″od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2″ |
| Horsepower | 3.0hp |
| Manufacturer | AquaFlo/Gecko |
| Pump Model | Flo-Master XP2 |
| Manufacturer Impeller Number | 91694300 |
| Volute Fastening Type | 8 Screws |
