Description

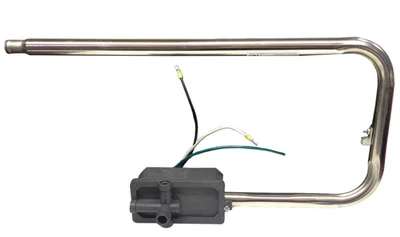

The Artesian Spa heater 3549-1 is discontinued without a factory replacement and we are supplying the current model compatible 5.5kW replacement heater.
This replacement heater is also trombone style 5.5 kW, 240 volts and is a substitute for 3549-1 for Gecko M-Class low-flow systems that use a circulation pump.
Supplying current model replacement for this heater.
23″ X 10″ X 15″ Squareback 3-Wire with Built in Thermal Cut-Out. Includes Titanium Heater Element and Hi-Limit Disk (repl 6000-093).
The old heater measured – 21″ x 14 1/2″ and was dual element with 4 wires.
This type of Lo-Flo Square Back M-Class replacement heater for hot tubs was used in select spas by Artesian, Dynasty, Island, Aber, Pacific and other hot tub manufacturers.
The closest heater to the discontinued model currently available is this Sundance Spa heater.
Specs 23″ X 10″ X 15″ Squareback 3-Wire with Built in Thermal Cut-Out. Includes Titanium Heater Element and Hi-Limit Disk
Used in Sundance/Jacuzzi Spa Models: 2011+ Constance and Victoria2008+ 680 Burlington, Hartford and Hawthorne with Circ pump 2007+ 680 Hartform and Hawthorne with Circ Pump 2007+ 780 Hamilton, Chelsee, Certa and Camden2003-06 Palermo, Bahia and Cayman2011+ All J-LX/J-LXL2002-06 J-350, J-3302004+ J-335, J-345, J-3552005-07 J-325 2007+ J-375, J-365, J-270, J-280
Replacement Option For: C3549-1C3236-1A 6698 66980 6500-403C3229-1A C3229-2A 1-HA-E24055LS SEH-5500-NH-6698 Aber-Pacific Artesian Atera Dimension One Dynasty HydroQuip LA Spas Santa Barbara
Note: Plumbing Adjustments May Be Required for Replacements Due to Original Heater Not being Available if replacing any of these heaters with this one.
23″ X 10″ X 15″ Squareback 3-Wire with Built in Thermal Cut-Out. Includes Titanium Heater Element and Hi-Limit Disk 6000-093).
