Description

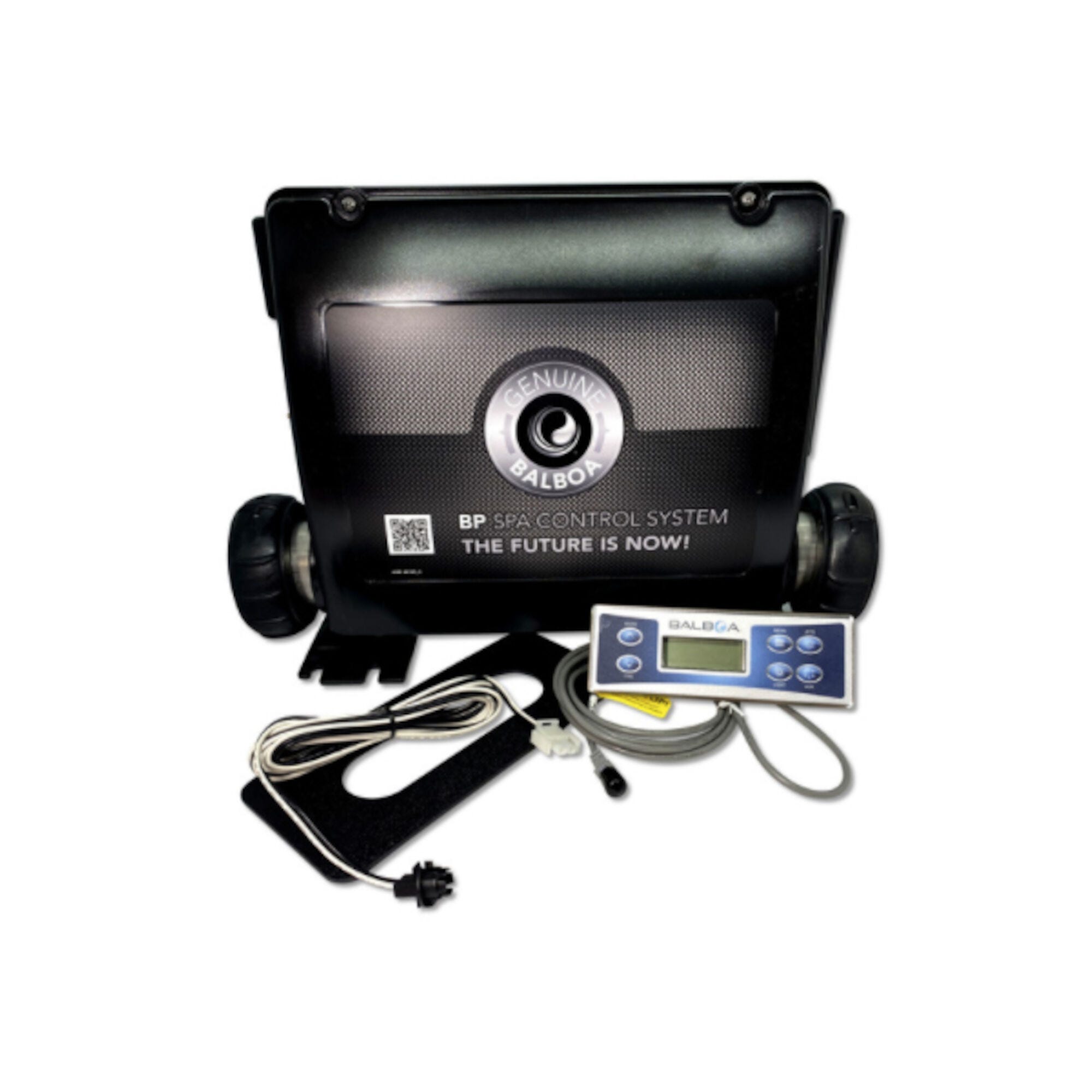

Balboa BP7 Spa Control System with 4.0kW Flow-Through Heater
Professional-Grade Control System with Advanced Multi-Relay Design
Product Overview
As a retailer of hot tub spare parts, I’m featuring the Balboa BP7 with 4.0kW heater – a versatile control system that combines advanced relay technology with reliable heating performance. This professional-grade system offers extensive configuration options for various spa setups.
Features:
- Supports all TP and SpaTouch topsides
- Supports all BP ancillary products (ControlMySpa, BBA, CZ, and Status Pro)
- Plug-N-Click Heater
- WiFi Support (via adaptor)
Kit Includes:
- G4361 – Balboa BP7 System with 4.0kW Heater
- 57238-01 – Balboa TP500 Panel, Less Overlay
- 17183 – TP500 Panel Overlay (6-Button, Rectangle)
- 25098 – Wire Assembly, 8ft for spa light
- 15480 – Panel Bezel (Adapter Plate)
-CAN REPLACE ANY BP BALBOA SYSTEM* – While using the existing topside that is already installed on the spa
-CAN REPLACE ANY BALBOA VS OR EL SYSTEM* – When you match it with any TP or SpaTouch™ topside panel
*Both the Circ pump and Ozone can be converted to 120V, however, they will be the same voltage after conversion. (Both 120V or both 240V.)
| Balboa BP7 User Guide | |
| Balboa BP Troubleshooting Guide | |
| Andi’s Top Tip – The BP7 is a great replacement spa pack and can replace any VS or EL system. Remember out of the box you may need to configure it to work with the hardware you have – there is a video below to explain this |
*If a 24-hour circulation pump is being installed, it must have no less than a 23 GPM flow. Laing, Grundfos, or Waterway Tiny Might pumps do not perform at this rate and cannot be used.
Additional Information
| System Voltage | 230V |
| Heater Type | Flow Thru |
| Heater Wattage | 4.0kW |
| Keypad Included | Included |
| Supports | Pump1 + Blower/Pump2 |
Alternate Part Numbers
- 54219
- 54216
- 54217
- 54220
- Replaces -VS300, VS500Z, VS501Z, VS501SZ, VS503SZ, VS504SZ, VS510SZ, VS510DZ, VS511Z, VS511SZ
