Description
DISCONTINUED
You can still make this pump by ordering the wet end and motor separately and assemble them together with the 4 included through bolts.
See motor B2235 and 4HP Vico wet end 1215007 or see/compare 5235212-S.
Or see/compare the lower cost, assembled and comparable 4HP 2-speed 230 volt, 56 frame LX pump on sale 56WUA400-II

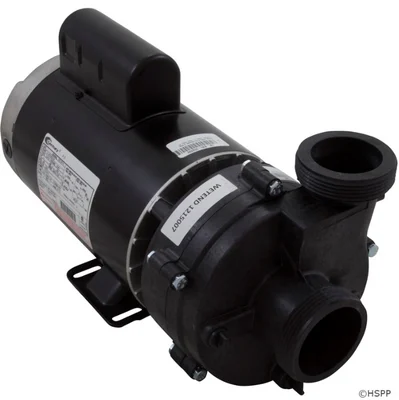

BWG Balboa Vico Ultimax 34-430-2528W, 4.0hp spa pump with Century motor is 230 volts, 2-Speed, 56 frame, 2″ inch plumbing.
Balboa Water Group/Vico pumps provide long life, excellent performance, value pricing and rotatable wet ends to line up with existing plumbing.
Vico pumps have excellent flow rates and are energy efficient.
Spa Pump Features:
- 56 frame design
- 12.0A/4.4A hi speed amps/low speed amps
- 230V
- 2-speed (can be wired for single speed)
- Energy efficient and whisper quiet
- Multi-direction volute mounting options deliver a range of plumbing configurations
- All seals are carbon ceramic with Viton elastomers for long-lasting performance, easily enduring prolonged heat and chemical exposure
- 34-430-2528W pump comes complete with factory warranty
- California Title 20 Compliant
Balboa Water Group Vico Ultimax 4Hp ,230V Pump 34-430-2528W is 56FR and 2-Speed.
Replaces 1016167 , 1016215 , 905130 , PUM22000730 .
| Complete Pump Type | Portable Spa Pump |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 6,9 o`clock |
| Pump to Motor Foot Types | 6 |
| Suction Auxiliary Port | 3/8″ barb (b) 1ea |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3-1/16″ outer diameter |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2″ |
| Discharge Auxiliary Port | 3/8″ barb (b) 1ea |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3-1/16″ outer diameter |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2″ |
| Horsepower | 4.0hp |
| Motor Frame | 56 Frame Thru-Bolt |
| Motor Amperage/Wattage | 12.0A/4.4A |
| Manufacturer | Vico/Balboa |
| Pump Model | Ultimax |
| Manufacturer Impeller Number | 1212008 green/orange/red/brown |
| Volute Fastening Type | 5 Bolts 5 Nuts |
Replaces a wide variety of pump models including some used in Gulf Coast Spas, Hydro Spa, Costco, Garden Leisure and Freestyle spas. Replaces 5HP pumps (match amp rating, not horsepower) and also can be used as a single speed pump by only wiring up the high speed terminal.
