Description
Discontinued pump – see/compare replacement pumps with air switches that operate at 115 volts – Vico 1051057 or Waterway 321JF10-0150

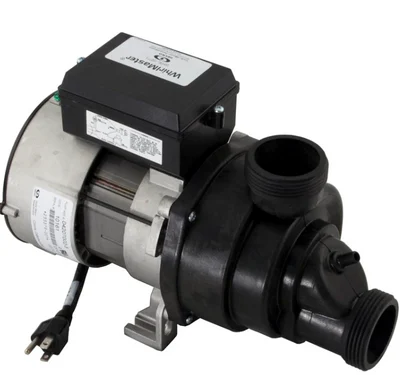

04207002-5010 is the version of Gecko Whirlmaster bath pump with built-in air switch is rated at 3/4 horsepower and operates at household current 110v-120v (115V). Single speed pump with NEMA 3 prong grounded power cord.
Aqua-flo by Gecko’s new WhirlMaster provides the high performance and flow rates necessary for today’s whirlpool bathtubs in a very affordable package.
WhirlMaster pumps are Aqua-Flo by Gecko’s smallest, most inexpensive jetted bath pump offering the same quality, reliability, and service at a greatly reduced cost.
The low profile compact design of the WhirlMaster is light weight and ideal for shallow tubs with limited space applications. Its quick release compression fittings allow for ease of installation and maintenance. WhirlMaster pumps provide 100% drainage.
- California Title 20 Compliant
| Length | Width | Discharge Height | Overall Height |
| 13.15″ | 5.625″ | 8.48″ | 7.23″ |
| Complete Pump Type | Bath Pump |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 115v |
| Drain Plug Location | None |
| Pump to Motor Foot Types | Footless |
| Suction Auxiliary Port | 3/8″ barb (b) 1ea |
| Suction Style | Bottom |
| Suction Connection (Physical Dimension) | 2-7/16″od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2″ |
| Discharge Style | Center |
| Discharge Connection (Physical Dimension) | 2-7/16″od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2″ |
| Horsepower | 0.75hp |
| Motor Amperage/Wattage | 9.0A |
| Manufacturer | Gecko-Alliance |
| Pump Model | WhirlMaster with Built-in Air Switch included |
