Description

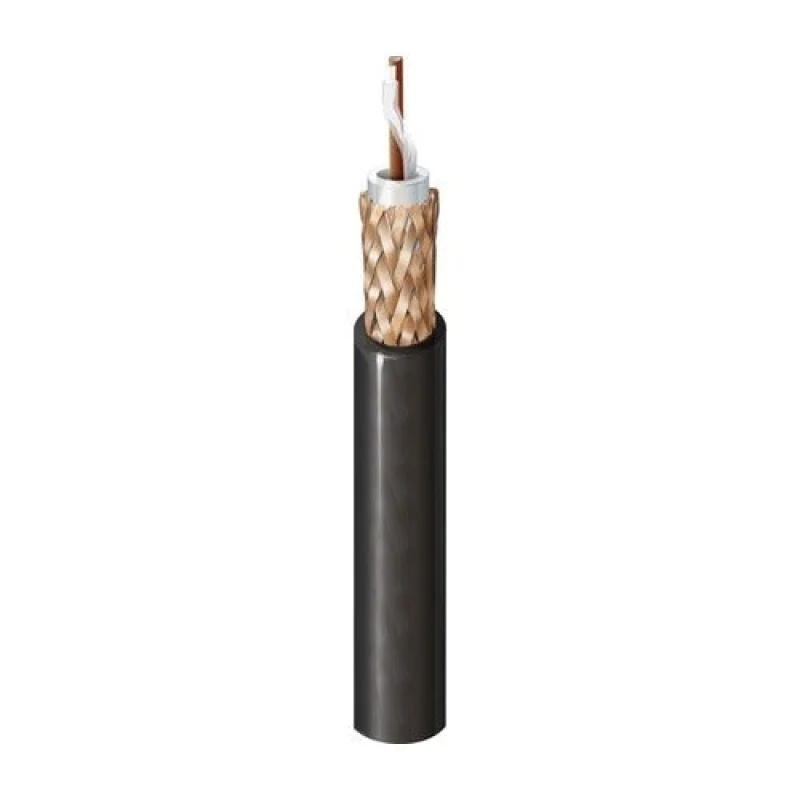

The BELDEN INC. 9228 0101000 is a shielded coaxial cable built to the RG-62A/U specification with a characteristic impedance of 93 ohms and a 22 AWG center conductor. This cable type is designed for low-capacitance signal transmission in applications where controlled impedance and shielding from electromagnetic interference are required. The shielded construction reduces signal degradation from external noise sources, making it suitable for data, instrumentation, and communications wiring in commercial and industrial environments. Electricians and low-voltage technicians are the primary installers of this cable type.
RG-62A/U coaxial cable at 93 ohms is historically associated with data networking, ARCNET installations, and instrumentation runs where the higher impedance characteristic is specified by the system design. This cable is sold by the unit as indicated by the supplier unit-of-measure designation. It is appropriate for use in conduit runs or open plenum pathways where the cable jacket rating permits, and in panel-to-device or device-to-device signal runs in industrial and commercial facilities.
Key Features
- RG-62A/U coaxial construction with 93-ohm characteristic impedance
- 22 AWG center conductor for low-capacitance signal transmission
- Shielded design reduces electromagnetic and radio-frequency interference pickup
- Sold individually by the unit (EA)
Compatibility
Designed as an OEM-style replacement or standard-supply coaxial cable for systems specifying RG-62A/U type 93-ohm shielded coax with a 22 AWG conductor.
Installation Notes
Installation should be performed by a licensed electrician or qualified low-voltage technician in accordance with applicable NEC articles covering communications and coaxial wiring. De-energize any connected equipment before terminating or splicing the cable. Avoid sharp bend radii that could deform the dielectric and alter the impedance characteristic of the cable run. Use connectors and termination hardware rated for RG-62A/U to maintain signal integrity throughout the installation.
Technical Specifications
- Cable Type: RG-62A/U Coaxial
- Impedance: 93 ohms
- Conductor Gauge: 22 AWG
- Shielding: Shielded
- Unit of Measure: EA (Each)
- Quantity Per Unit: 1
Standard Information
- Brand: BELDEN INC.
- Manufacturer Part Number: 9228 0101000
