Description

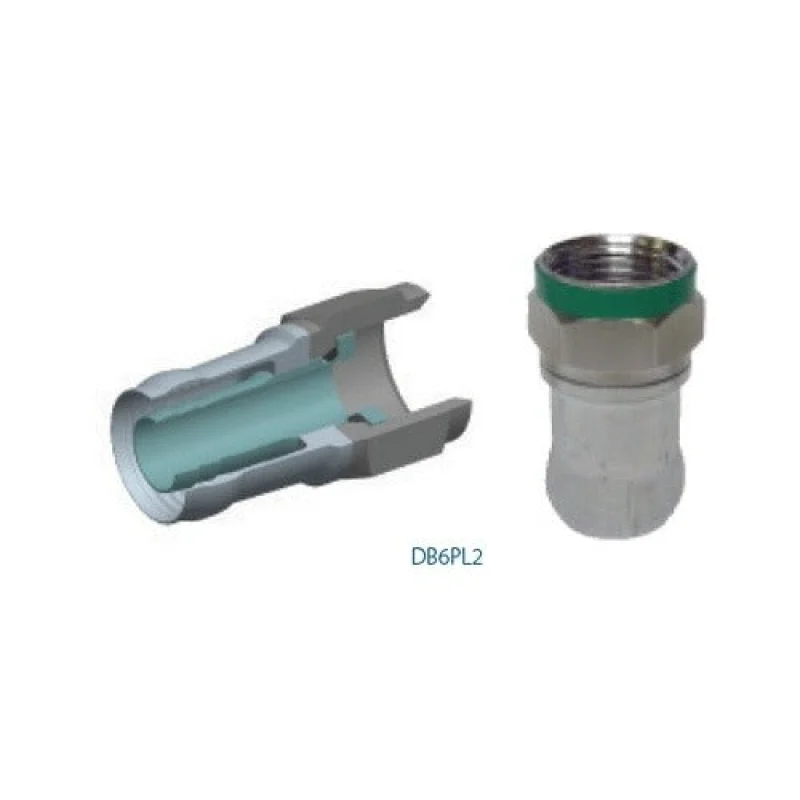

The BELDEN INC. DB6PL2-25 is an RG6 F-type coaxial connector rated for plenum-space installation, sold in a 25-piece pack. F-type connectors are the standard termination fitting for RG6 coaxial cable runs used in cable television, satellite, and low-voltage distribution systems. The plenum rating indicates the connector meets fire and smoke requirements for use inside air-handling spaces above drop ceilings and below raised floors. Low-voltage technicians and structured-wiring installers use these connectors to terminate RG6 cable at equipment ports, wall plates, and distribution devices.
This connector is suited for residential and light commercial installations where coaxial cable runs through plenum-rated pathways. Common applications include satellite dish feedlines, cable TV distribution, and MATV or SMATV trunk lines routed through air-handling plenum spaces. The 25-piece pack quantity supports multi-drop jobs or service van stocking. Installers working under NFPA 90A or local building codes requiring plenum-rated materials in air-handling spaces will find this fitting appropriate for those environments.
Key Features
- F-type interface for standard RG6 coaxial cable termination
- Plenum-rated construction meets smoke and flame requirements for air-handling space installations
- 25-piece pack quantity supports multi-outlet jobs and field stock replenishment
- Designed for low-voltage coaxial distribution systems including cable TV and satellite
Compatibility
Designed as an OEM-style termination connector for RG6 coaxial cable used in low-voltage distribution systems requiring plenum-rated components.
Installation Notes
Installation is performed by licensed low-voltage or structured-wiring technicians in accordance with NFPA 70 (NEC) Article 820 governing coaxial cable. De-energize any active signal sources before terminating cable ends. Use the appropriate RG6 stripping and crimping tools to ensure proper conductor and dielectric exposure before seating the connector. Verify that all materials installed within plenum air-handling spaces carry the required plenum rating per local code before concealment.
Technical Specifications
- Connector Type: F-Type
- Cable Compatibility: RG6
- Installation Environment: Plenum-rated
- Pack Quantity: 25 pieces
- Unit of Measure: EA
Standard Information
- Brand: BELDEN INC.
- Manufacturer Part Number: DB6PL2-25
