Description

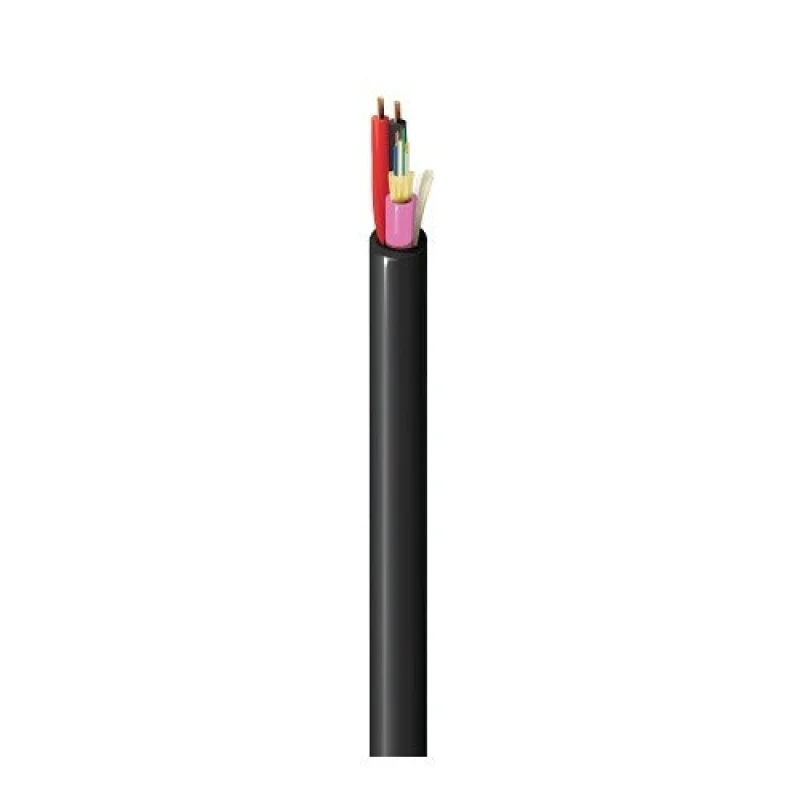

The BELDEN INC. HD4D0060216RJ is an HD distribution-style fiber optic cable combining an OM4 multimode 6-fiber optical core with 2 conductors rated at 16 AWG in a single CMR-OF jacket. The CMR (Communications Multipurpose Cable, Riser) rating with an outdoor-to-indoor optical fiber designation makes this a versatile trunk cable suited for backbone and horizontal distribution runs in commercial and institutional structured cabling installations. Licensed low-voltage or>
This cable is intended for indoor riser-rated distribution runs in commercial buildings, data centers, campus backbones, and mixed-use facilities where OM4 multimode performance is required alongside integrated copper conductors. The CMR-OF rating qualifies it for riser fire-stop zones without additional conduit in most jurisdictions. Typical applications include inter-floor fiber trunk runs, IDF-to-MDF backbone segments, and any structured cabling environment where a combined fiber-plus-copper cable simplifies conduit fill and termination count.
Key Features
- OM4 multimode 6-fiber optical core supports high-bandwidth applications including 40G and 100G Ethernet at rated distances
- Integrated 2-conductor 16 AWG copper in the same sheath reduces conduit fill and simplifies mixed-signal runs
- CMR-OF rated jacket meets riser fire code requirements for indoor optical fiber applications
- HD distribution construction allows for compact, high-density routing in trays, conduit, and riser shafts
- Single-unit (EA) packaging with quantity of 1 per unit for straightforward procurement
Compatibility
Designed for use in OM4 multimode structured cabling systems requiring a CMR-OF rated distribution fiber optic cable with integrated copper conductors. Consult local AHJ and applicable TIA-568 standards to confirm suitability for the specific installation environment.
Installation Notes
Installation should be performed by a licensed low-voltage or>
Technical Specifications
- Fiber Type: OM4 Multimode
- Fiber Count: 6 fibers
- Copper Conductors: 2 conductors, 16 AWG
- Cable Rating: CMR-OF (Riser, Optical Fiber)
- Construction: HD Distribution
- Unit of Measure: EA (Each)
- Quantity Per Unit: 1
Standard Information
- Brand: BELDEN INC.
- Manufacturer Part Number: HD4D0060216RJ
