Description

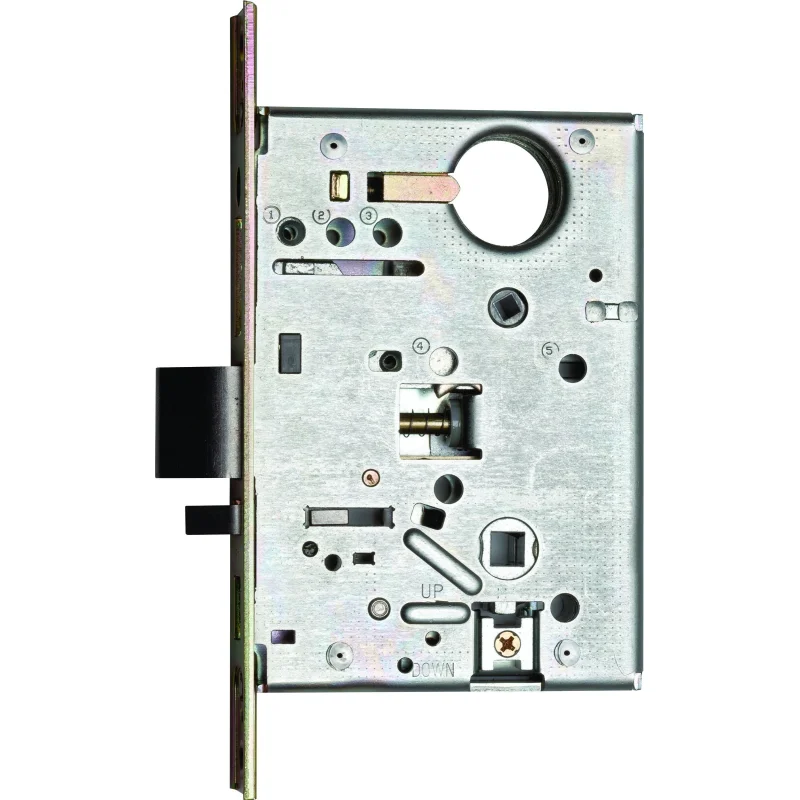

The BEST 45HCAD626 is a storeroom mortise lock body finished in satin chrome, designed for commercial door hardware applications requiring reliable mechanical security. This is the lock body only no core is included. The 45HCAD626 is compatible with BEST interchangeable core systems, making it well suited for facilities that use masterkey or rekeyable access control programs. At 3.8 pounds and measuring approximately 13.4 inches in length, 13 inches in width, and 2.8 inches in height, this is a substantial, commercial-grade unit built for high-traffic door installations.
This mortise lock body is intended for storeroom function applications, meaning the outside lever or knob is always locked and requires a key or credential for entry, while the inside is always free for egress. It is typically installed in commercial and institutional settings such as offices, schools, healthcare facilities, and government buildings where controlled access to storage or restricted areas is required. Licensed locksmiths and commercial door hardware installers are the primary tradespeople who specify and install this product.
Key Features
- Storeroom function: outside always locked, inside always free for egress
- Mortise lock body design for commercial-grade door prep
- Compatible with BEST interchangeable core system for masterkeying flexibility
- Satin chrome finish for durability and clean appearance in commercial environments
- Sold as a single lock body unit core ordered separately
Compatibility
Designed as an OEM-style replacement or new-installation mortise lock body for commercial doors prepared to accept standard mortise lock pockets, compatible with BEST interchangeable core systems.
Installation Notes
Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Verify that the door preparation (mortise pocket dimensions and backset) matches the lock body specifications before installation. Ensure the door and frame are plumb and square to allow proper latch and deadbolt operation. Do not force the lock body into a pocket that does not match the required cutout dimensions.
Technical Specifications
- Function: Storeroom
- Lock Type: Mortise Lock Body
- Finish: Satin Chrome
- Length: 13.4 inches
- Width: 13 inches
- Height: 2.8 inches
- Weight: 3.8 pounds
- Sold As: Each (body only, core not included)
Standard Information
- Brand: BEST
- Manufacturer Part Number: 45HCAD626
