Description

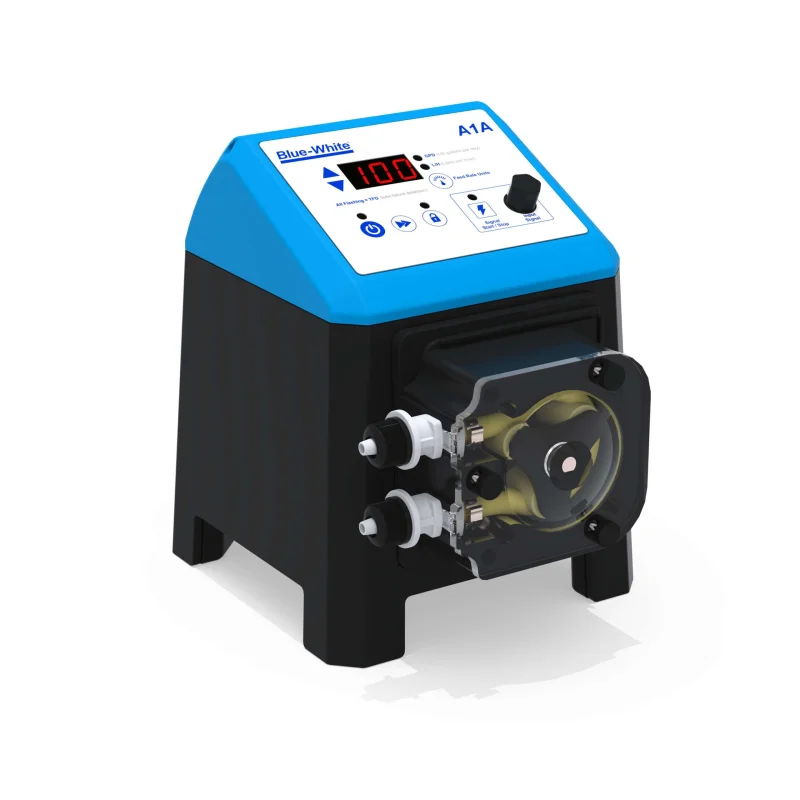

Blue-White FlexFlo Peristaltic Metering Pump A1A6-7T
For installations requiring higher chemical feed, such as Water Parks and other high-volume Commercial Aquatics for sanitizing (sodium hypochlorite) and pH adjustment (acid) for lowmaintenance, more trouble-free, and reliable chem feed solution.
Features:
- Peristaltic pump design does not have valves that can clog requiring maintenance.
- Self-priming even against maximum line pressure. By-pass valves are not required.
- Cannot vapor lock or lose prime.
- Remote Start/Stop: Non-powered dry contact closure for remote start/stop.
- One 48VDC @ 80mA relay
- Compatible with Blue-Whites output Flow Verification Sensor (FVS) system.
- CNC precision-machined squeeze rollers for optimum squeeze, unparalleledaccuracy, and tube life.
- Heavy-duty rotor single piece plastic rotor means no flexing and increasedaccuracy withno metal springs or hinges to corrode.
- Energy-efficient variable speed DC motor.
- Specially engineered tubing for long life.
- Tube Failure Detection (TFD) senses tube rupture preventing hazardous chemical spills.
- Lockout feature to prevent tampering.
Whats Included:
- A1A Acid and Liquid Chlorine Feeder
- One tube assembly
- Suction tube clear PVC 5 length (3/8 OD x 1/4 ID)
- Suction strainer
- Suction ceramic weight
- Discharge tube opaque polyethylene 5 length (3/8 OD x 1/4 ID)
- Discharge injection fitting with check valve
- Mounting hardware kit
- (2) Tube nuts
- 2 year warranty
Specifications:
- Maximum Working Pressure (Excluding pump tubes): 40 PSI (2.76 bar)
- Duty Cycle: Continuous
- Maximum Overall Dimensions: 7.25 Width x 9 Height x 10 Depth
- Maximum Suction Lift: 30 feet of water at sea level (14.7 atm psi)
- Flow Range Adjustment: 0.01 100 GPD (0.01 15.8 LPH)
- Ambient Operating Temperature: 14 F to 125 F (-10 C to 52 C)
- Motor: Brushless DC, 50W
- Enclosure: NEMA 4X (IP66), Valox (PBT) & PA12
- Voltage: 220
Blue-White A1A6-7T
