Description
DISCONTINUED replaced by 50-BP7-500-7S-K

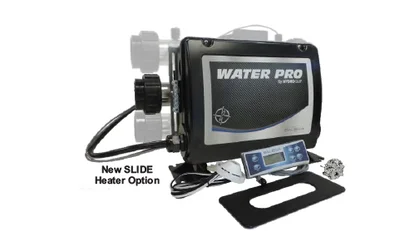

BP5 Balboa Control System 50-BP5-50E-7S-K Water Pro with a TP500 topside.
This BP5-500 Water Pro Series control system is a 3-circuit style with an expander board.
This control system features a 5.5 kilowatt slide heater.
Includes a TP500 topside control panel.
Pump 1 (1 or 2-speed), Pump 2 (1 or 2-speed) and either a Pump 3 1-speed or blower, and supports a circ pump.New slide heater.This BP5-500 Water Pro Series control system is a 3-circuit style with an expander board.This control system features a 5.5 kilowatt slide heater.Includes a TP500 topside control panel with overlay.SYSTEM SPECIFICATIONSELECTRICAL INPUT SPECIFICATION: SINGLE PHASE,120/240VAC, 60HZCIRCUIT(S) MAXIMUM AMPS PUMP(S) 11A CIRC PUMP 4A BLOWER 11A LIGHT 2A OZONE 1A HEATER 23AKit includes the control panel,overlay,adapter plate, 2″ tailpieces and gaskets and a 12v light assembly with LED bulb.15”W x 12”H x 6”DRequired flow rate 25 gallons per minute.
