Description

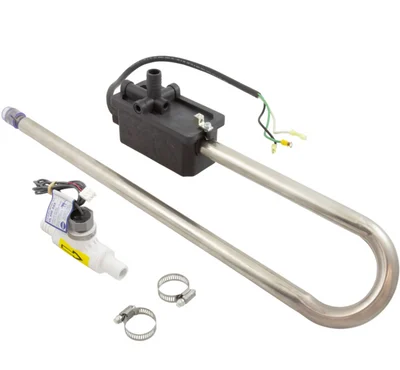

26-3473-1H-5T-F is a low flow heater assembly rated at 240v, 4.0kW by Hydroquip to replace Laing/Trombone Style heaters.This heater includes the hi limit sensor and flow switch.
cord included.
26 1/2 inch wide trombone style low flow heater.
Replaces Caldera/Watkins heaters.4.0kw 230v Low Flow Trombone Heater. 26″ x 6″ dual element w/40″ pigtail cord & off angle box w 3/4″ barb and pressure switch cord. Includes flow switch. Heater type used on Caldera Utopia and Paradise Series 2002 and newer.
Replaces Laing 6595.1, Caldera/Watkins72494
| Heater Application | Caldera Paradise Series, Caldera Utopia Series |
| Kilowatts | 4.0kW |
| Low Flow Heater Assy Style | Stainless Steel |
| Heater Inlet Size | 3/4″ |
| Heater Inlet Type | Barb (b) |
| Heater Outlet Size | 3/4″ |
| Heater Outlet Type | Barb (b) |
