Description

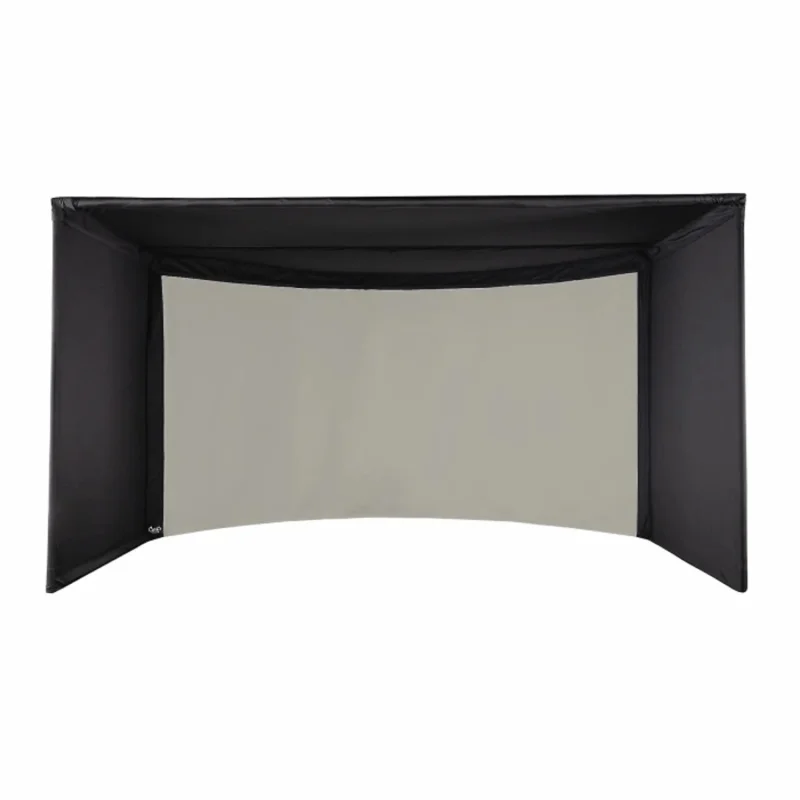

The most immersive DIY golf simulator on the market. The Carl’s Place Curved Golf Simulator Enclosure Kit with High-Contrast Gray Golf Impact (10’H 15’W 15’D) is the first-ever DIY curved golf simulator kit, featuring an innovative curved impact screen that creates a panoramic, wide-field-of-view experience you can’t get from any flat enclosure.
Designed for high-end residential and commercial use, this kit delivers a lifelike simulation environment with premium materials, a single-projector setup, and optional custom sizing down to the inch.
What’s Included
- High-Contrast Gray Golf Impact Specialized gray three-layer screen producing deeper blacks, richer colors, and enhanced contrast on the curved surface ideal for spaces with ambient light.
- BlackStop Enclosure Surround Fabric premium knit fabric blocks ambient light and enhances immersion
- Foam Insert Kit pre-cut foam inserts to protect the frame and reduce rebound
- Steel 2″ Fittings for 2″ EMT framing pipes (sold separately)
- Ball Bungees and Zip Ties to tension and mount the curved screen
Pipe Framing Kit is NOT included. Add the Pipe Framing Kit or source 2″ EMT locally (true OD: 2.197″ / 55.8mm).
Enclosure Specifications 10’H 15’W 15’D
| Specification | Detail |
|---|---|
| Enclosure Size (H W D) | 10’H 15’W 15’D |
| Depth Note | 15′ depth maximum rear space for full rear access, equipment staging, and flexible projector positioning. |
| Rear Backset Fitting | Adds 9.5″ to total depth minimum 9.5″ rear clearance required |
| Ceiling Clearance Recommended | 67 inches above enclosure height |
| Side Clearance Recommended | 23 inches each side |
| Minimum Recommended Room Width | 15’8″ |
| Minimum Recommended Room Height | 10’8″ |
| Frame Pipe Required | 2″ EMT (true OD 2.197″ / 55.8mm) NOT 1″ EMT or PVC |
| Projector Setup | Single projector optional image warping software recommended for full curved correction |
Key Features
- First-ever DIY curved golf simulator kit panoramic curved screen creates an unmatched wide field of view
- Curved Impact Screen enhances simulation depth and peripheral immersion vs. flat screens
- Single Projector Setup one projector is enough; optional image warping software for full correction
- BlackStop Enclosure Fabric blocks ambient light, deepens contrast
- Foam Insert Kit Included protects frame, reduces rebound and noise
- DIY-Friendly Assembly step-by-step instructions included
- Custom Sizing Available standard sizes or fully custom to the inch
- Recommended hitting distance: 1012 feet from screen
