Description

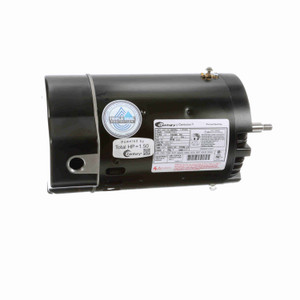

CENTURY POOL PUMP MOTOR, 1.5 HP, 1 PH, 60 HZ, 230/115 V, 3600 RPM, M56J FRAME, DP – HBC150
Features
- Long lasting with Triple Seal™ protection to prevent water and debris intrustion
- Fast and easy installation with the open and accessible terminal board and wiring compartment
- Premium sealed 203 bearings both ends
- Definitive shaft access (7/16” wrench)
- Voltage change device
- Open dripproof
- Designed for optimal performance and efficiency
- Most durable and economical solution in the market today
Nameplate Specifications
| Phase: | 1 | Output HP: | 1.5 Hp |
| Output KW: | 1.1 kW | Voltage: | 230/115 V |
| Speed: | 3450 rpm | Service Factor: | 1 |
| Frame: | M56J | Enclosure: | Drip Proof |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 50 °C |
| Frequency: | 60 Hz | Current: | SF 7.2/14.4 A |
| Duty: | Continuous | Insulation Class: | F |
| UL: | Recognized | CSA: | Y |
| Number of Speeds: | 1 |
