Description

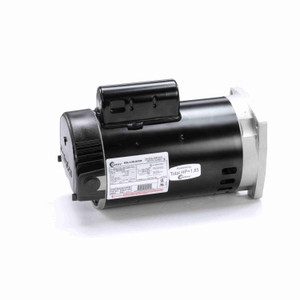

Century(R) HSQ1102 Square Flange Full-Rated Replacement Pool and Spa Pump Motor; 1 HP, 3450 RPM, 115/208-230 V, 56Y, Threaded Shaft
This motor is a direct replacement for Hayward TriStar motor SP3210Z1BE
Features
- 60°C Ambient
- Energy Efficient
- Capacitor Start/Capacitor Run
- Sealed Ball Bearings
- UL 1081 Design
- Open Dripproof
- 303 Stainless Steel Shaft
- Hayward Tristar Replacement
- Replaces SP3210Z1BE
- Energy efficient
- 1/2-20 UNF-2A RH threaded shaft
Nameplate Specifications
| Phase: | 1 | Output HP: | 1.0 Hp |
| Output KW: | 0.75 kW | Voltage: | 230/115 V |
| Speed: | 3450 rpm | Service Factor: | 1.85 |
| Frame: | Y56Y | Enclosure: | Open Drip Proof |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 60 °C |
| Frequency: | 60 Hz | Current: | 8.8-7.5/15.0 A |
| Duty: | Continuous | Insulation Class: | F |
| UL: | Recognized | CSA: | Y |
