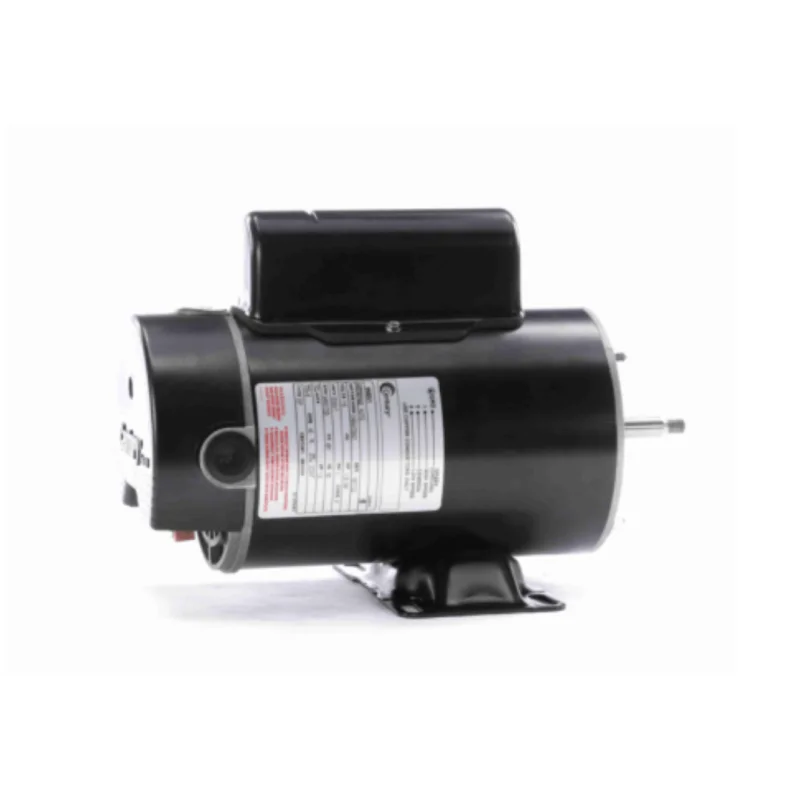

Description
- Two Speed
- 12 & 3 O’clock Conduit Entries
- 3-1/2″ Shaft Height
- 40C Ambient
- Four Thru Bolts on a 5.146 Bolt Circle
- Flex 48 LASAR Line Low Amp Start and Run with 48/56 Base Mounting
- 48/56 Base Mounting
- Threaded Shaft
- Rigid Base
- Energy Efficient
Used On:
- Jacuzzi LR, LR3, LR6, LR9 Pump Parts
- Aqua-Flo Flo-Master FMCP Pump Parts
- Aqua-Flo Flo-Master FMHP Pump Parts
- Hayward Power-Flo Matrix Pump Parts
- Pentair Dynamo Pump Parts
- Pentair Optiflo Pump Parts
- Sta-Rite ABG Series Pump Parts
- Sta-Rite JWP Series Pump Parts
- Waterway Center Discharge Pump Parts
- Waterway Hi-Flo Side Discharge Pump Parts
Specifications:
- Phase: 1
- Output HP: 1.5/.188 Hp
- Output KW: 1.1 kW
- Voltage: 115 V
- Speed: 3450/1725 rpm
- Service Factor: 1
- Frame: 48Y
- Enclosure: Open Drip Proof
- Thermal Protection: Thermally Protected
- Ambient Temperature: 40 C
- Frequency: 60 Hz
- Current: 13.5/4.7 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 2
