Description

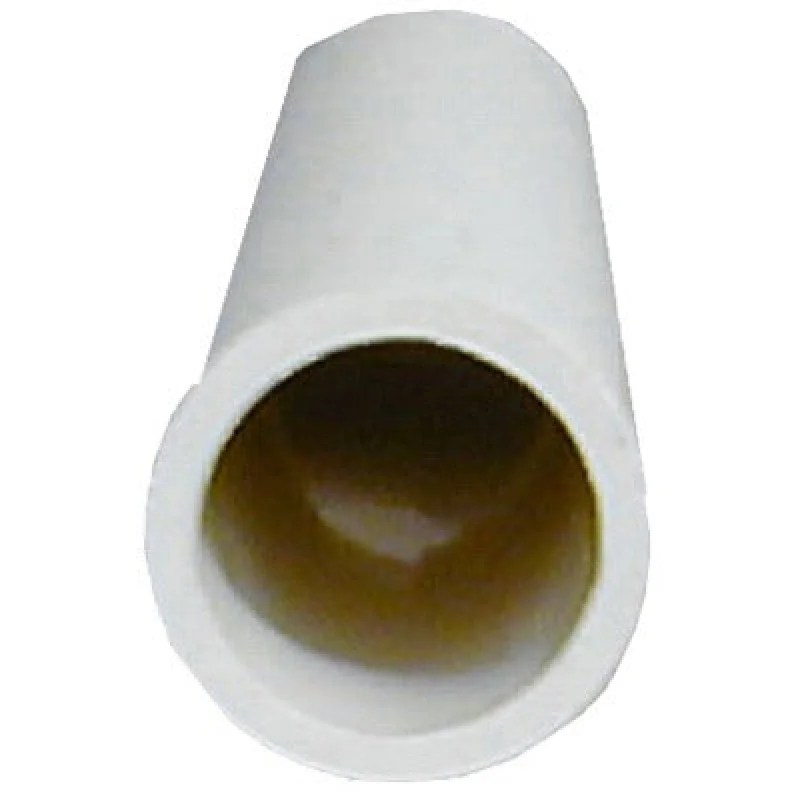

The Charlotte Pipe Foundry CTS120070600HA is a 3/4-inch SDR 11 CPVC water supply pipe designed for residential and light commercial hot and cold potable water distribution systems. Built to a solid-wall, plain-end configuration, it is rated at 400 psi and conforms to ASTM D-2846 dimensional and performance standards. The FlowGuard Gold CPVC compound delivers resistance to corrosion, scale buildup, and chlorine degradation over the life of the system. Licensed plumbers and pipefitters are the primary installers of this product in new construction and retrofit applications.
This pipe is intended for indoor potable water supply lines where CPVC is the specified material. Its 10-foot stick length suits standard rough-in work in residential construction, multifamily housing, and light commercial build-outs. The plain-end configuration accepts CPVC solvent-weld fittings conforming to the same ASTM D-2846 standard. Each package contains 10 sticks. NSF Standard 61 certification confirms the material is suitable for contact with drinking water.
Key Features
- Rated at 400 psi for demanding water supply service
- SDR 11 solid-wall construction per ASTM D-2846
- FlowGuard Gold CPVC compound resists corrosion, scale, and chlorine attack
- NSF Standard 61 certified for potable water contact
- Plain-end configuration accepts standard CPVC solvent-weld fittings
- 10-foot stick length packaged 10 sticks per unit
Compatibility
Designed for use with CPVC solvent-weld fittings and transition fittings conforming to ASTM D-2846 in 3/4-inch CTS (Copper Tube Size) dimension, suitable for hot and cold potable water distribution systems where CPVC pipe is the specified material.
Installation Notes
Installation should be performed by a licensed plumber in accordance with the International Plumbing Code and applicable local codes. Shut off the water supply and depressurize the line before cutting or joining pipe. Use only CPVC-rated solvent cement and primer recommended for FlowGuard Gold systems; do not substitute PVC cement. Allow adequate cure time before pressurizing the system per the cement manufacturer’s instructions.
Technical Specifications
- Pipe Size: 3/4 inch
- Length: 10 feet
- Dimension Ratio: SDR 11
- Pressure Rating: 400 psi
- Wall Type: Solid Wall
- End Type: Plain End
- Material: FlowGuard Gold CPVC
- Standard: ASTM D-2846
- Certification: NSF Standard 61
- Package Quantity: 10 sticks per package
- Package Weight: 13.9 pounds
Standard Information
- Brand: Charlotte Pipe Foundry Co.
- Manufacturer Part Number: CTS120070600HA
