Description

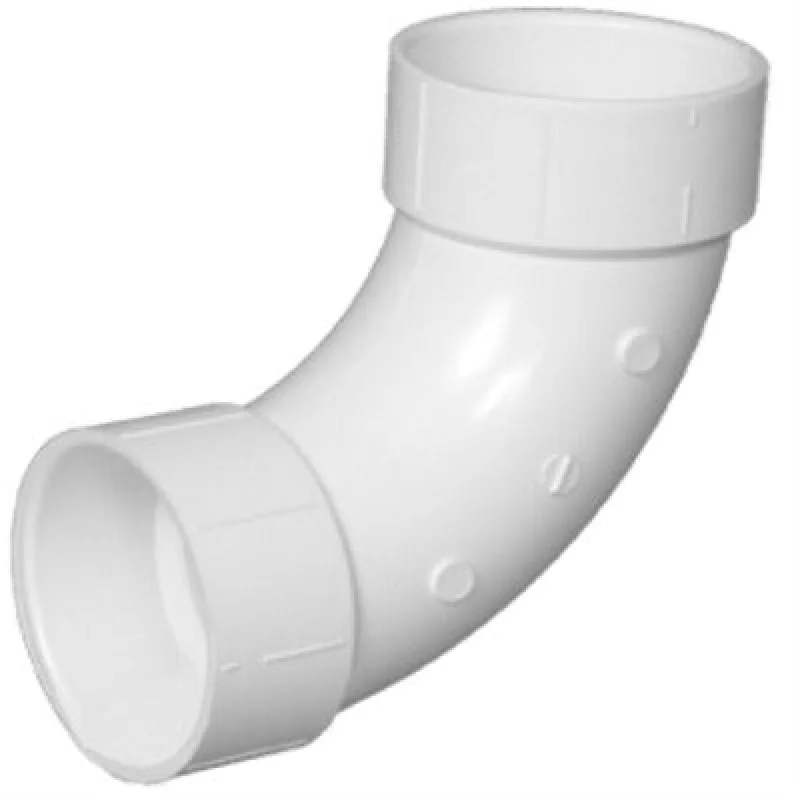

The CHARLOTTE PIPE FOUNDRY CO. PVC 00304 1000HA is a 3-inch Schedule 40 PVC DWV 90-degree long sweep elbow designed for drain, waste, and vent piping systems. The long sweep radius reduces flow restriction and minimizes buildup compared to standard short-turn fittings, making it a reliable choice in gravity-flow drain lines. This fitting is manufactured from Schedule 40 PVC, offering solid wall thickness suited to residential and light commercial DWV applications. Licensed plumbers and pipefitters install this fitting as part of horizontal drain runs or offset transitions where a gradual directional change is required.
This elbow is used in residential and commercial DWV systems where a 90-degree direction change is needed with reduced turbulence and improved drainage flow. Typical applications include soil stacks, branch drain lines, and vent connections in new construction and retrofit plumbing work. The 3-inch diameter suits standard water closet and main drain branch sizing in residential installations. This package contains 10 fittings, making it practical for multi-fixture rough-in work or contractor stocking.
Key Features
- 3-inch diameter fits standard residential DWV drain and vent piping
- 90-degree long sweep design provides gradual flow transition to reduce clogging potential
- Schedule 40 PVC wall thickness meets standard DWV pressure and load ratings
- Solvent-weld socket connections for secure, leak-free joints
- Sold in a 10-pack quantity for multi-unit or rough-in applications
Compatibility
Designed as an OEM-style replacement and new-installation fitting for Schedule 40 PVC DWV piping systems using 3-inch nominal pipe diameter.
Installation Notes
Installation should be performed by a licensed plumber in accordance with the International Plumbing Code (IPC) and local authority having jurisdiction requirements. Shut off water supply and ensure the drain line is clear before cutting into existing piping. Clean and deburr pipe ends before applying approved PVC primer and solvent cement per manufacturer directions. Do not use this fitting on pressurized supply lines.
Technical Specifications
- Pipe Diameter: 3 inches
- Sweep Angle: 90 degrees
- Schedule: Schedule 40
- Application: DWV (Drain, Waste, Vent)
- Package Quantity: 10 per package
- Weight: 13.39 pounds (package)
- Unit of Measure: EA
Standard Information
- Brand: CHARLOTTE PIPE FOUNDRY CO.
- Manufacturer Part Number: PVC 00304 1000HA
