Description

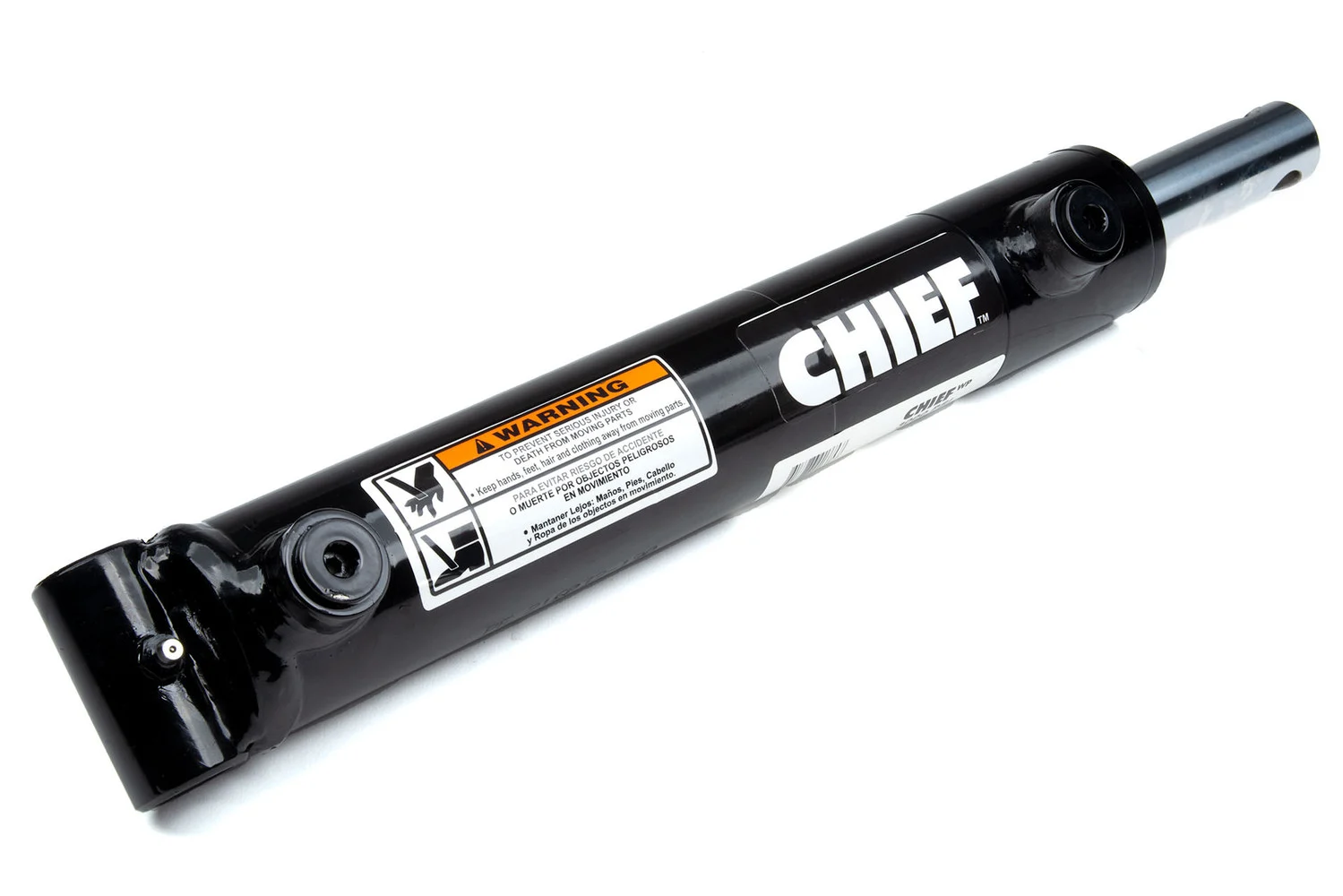

This 4 in bore x 60 in stroke Chief WP Welded Hydraulic Cylinder is a highly versatile medium-duty welded cylinder with a cross-tube base. Every Chief WP cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to insure performance reliability.
Specifications:
Bore: 4 in
Stroke: 60 in
PSI: 3000
Retracted: 69 in
Pin Diameter: 1.25 in
Rod Diameter: 2 in
Extended: 129 in
Column Load: 10780 lbs
Port Size: SAE 8
Brand: Chief
