Description

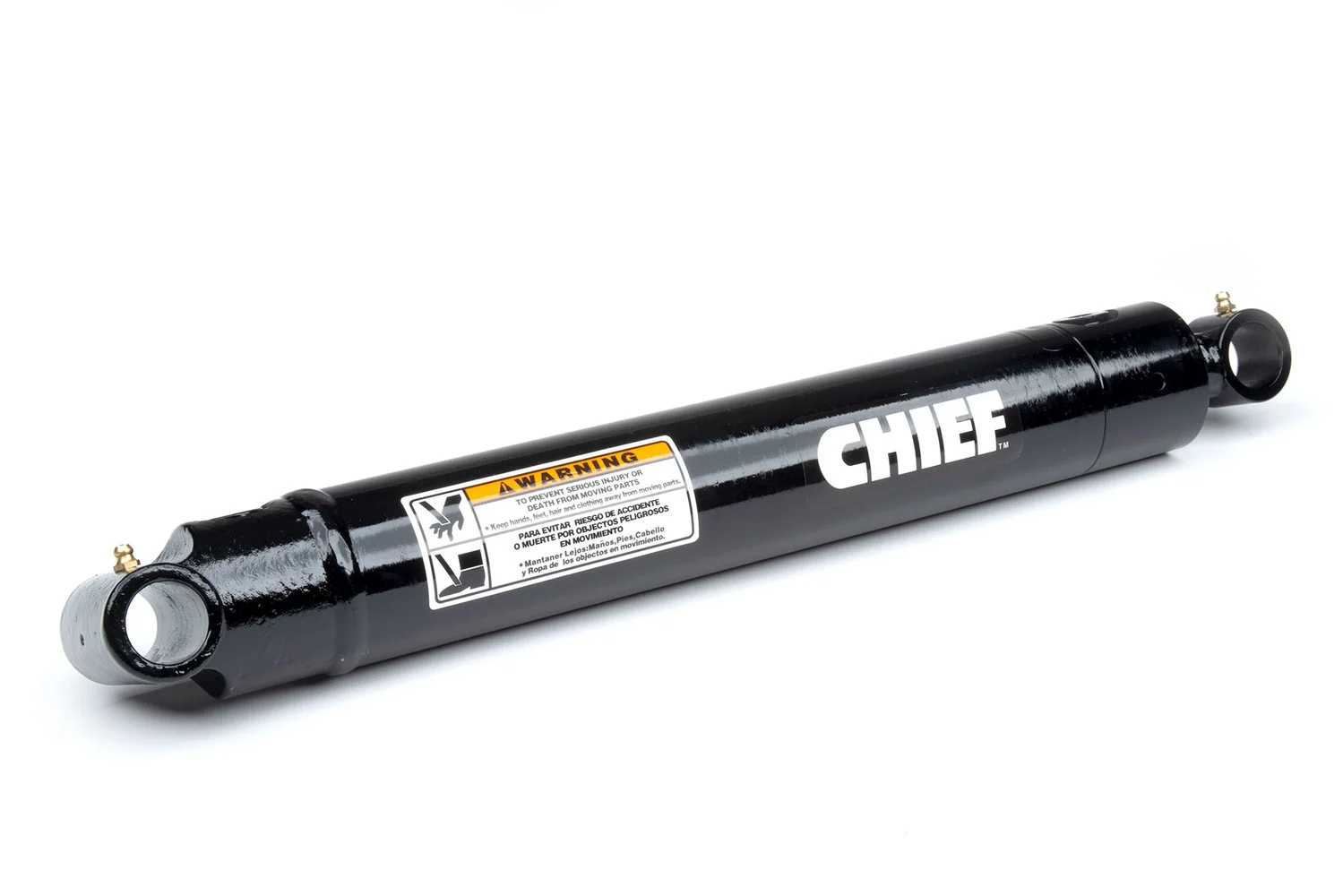

This 2.5 in bore x 60 in stroke Chief WX Welded Hydraulic Cylinder features an adjustable 360 deg rotating gland and is widely used in applications where the same size cylinder can be used in a variety of directions and port positions.
Specifications:
Bore: 2.5 in
Stroke: 60 in
PSI: 3000
Retracted: 72 in
Pin Diameter: .75 in
Rod Diameter: 1.375 in
Extended: 132 in
Column Load: 2280 lbs
Port Size: SAE 8
Brand: Chief
