Description

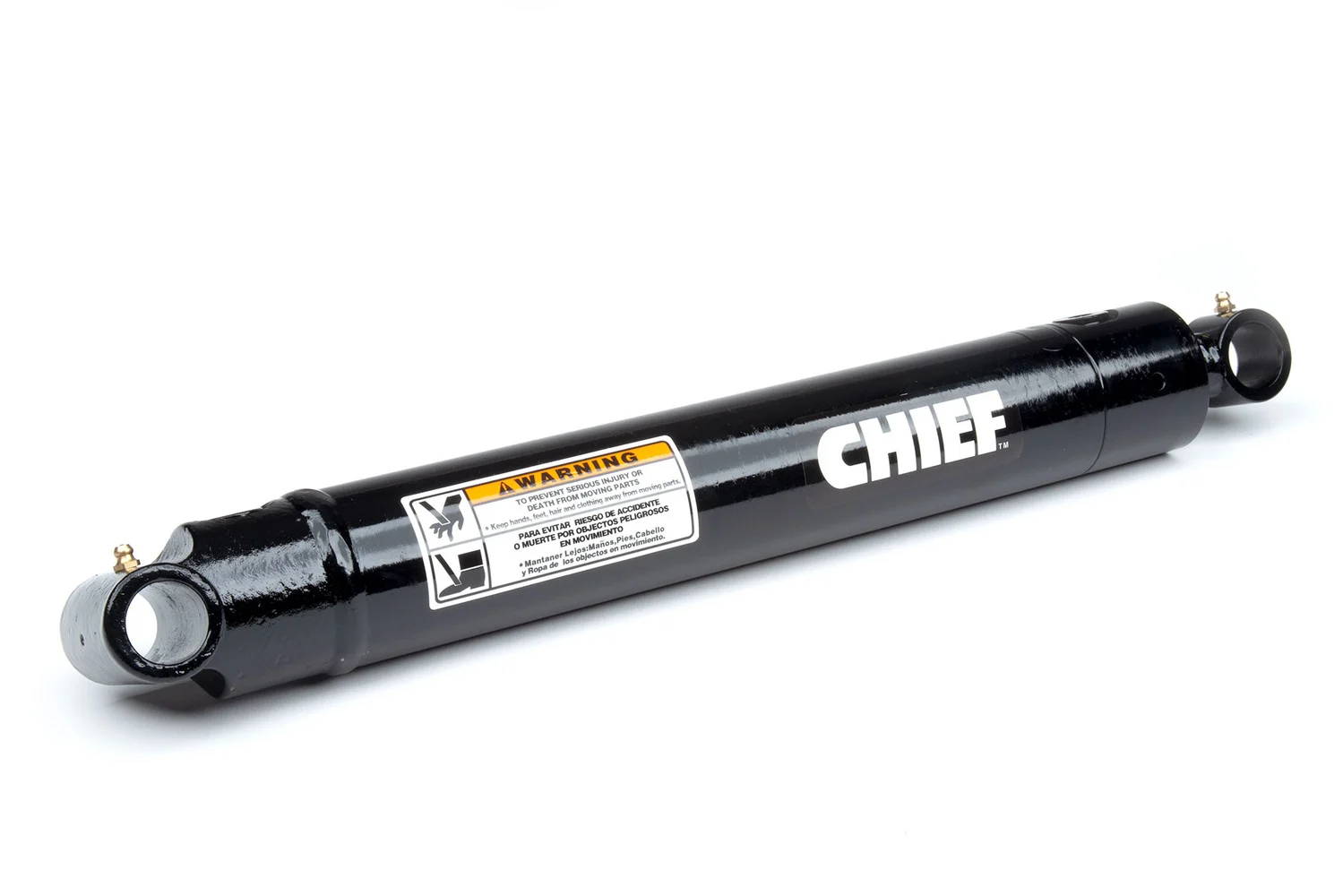

This 5 in bore x 60 in stroke Chief WX Welded Hydraulic Cylinder features an adjustable 360 deg rotating gland and is widely used in applications where the same size cylinder can be used in a variety of directions and port positions.
Specifications:
Bore: 5 in
Stroke: 60 in
PSI: 3000
Retracted: 76 in
Pin Diameter: 1.5 in
Rod Diameter: 2.5 in
Extended: 136 in
Column Load: 22000 lbs
Port Size: SAE 12
Brand: Chief
