Description
Coleman 3 Hp, 230 Volt, 2 Speed, 12.0/4.4 Amps, 56 Frame Pump and US Motor 103699b.
Or save with the 56WUA400-II 2-speed pump.
2 Inch Plumbing. connections.
Includes AMP cord and 2x 2 inch pump unions with orings.
Coleman Spa Pump 3.0HP, 2-Speed, 230 volts,60HZ, 56 Frame, GECKO

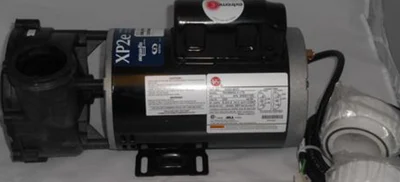

Coleman 2-Speed 230V Pump 103699B AquaFlo XP2e style factory recommended replacement pump for select Maax Coleman Spas. This is a 230v, 56 frame side discharge spa pump that connects to 2 inch inner diameter plumbing.
Used In Coleman Spa Models: 2002: 508 607 608 740TL 2004 through 2006 Base: 470 471 472, 2004 through 2006 Deluxe: 480 481 482, 2004 Thrrough 2006 Aeromaax: 480 481 482, 2007 Deluxe & Aeromaax: 480 481 482For certain retrofits, the pump mounting plate may need to be removed from the floor of the spa and moved ¼” forward or backward so the inlet and discharge plumbing match up.
Rated at 12.0A/4.4A at 230 volts.
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3-1/16″od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2″ |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3-1/16″od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2″ |
| Horsepower | 3.0hp |
| Motor Frame | 56 Frame Thru-Bolt |
| Motor Amperage/Wattage | 12.0A/4.4A |
