Description
Product Launch Delayed Until 2027 in Canada
A New Standard in Salt Chlorine Generation

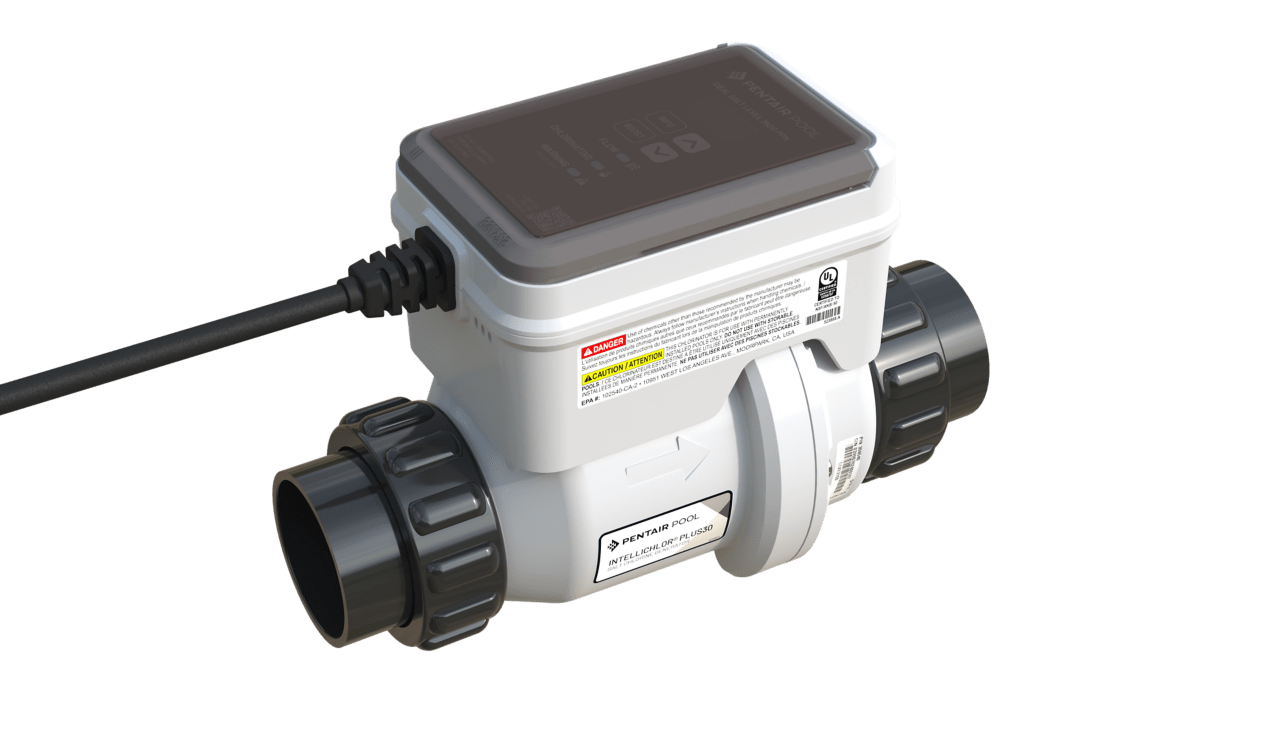

The IntelliChlor Plus & LT Salt Chlorine Generations have new and improved modular designs – providing more serviceability and accuracy than Pentair’s first-generation IntelliChlor and iChlor Salt Chlorine Generators.
Pentair Item Code: 523741
Drop-in Replacement for 522109, 520888, 523010, and 523080
Features
Drop-in replacement for existing Pentair salt chlorine generators, which requires no additional plumbing.
Compatible with existing IntelliChlor Power Center and Pentair automation systems.
Modular design enable simple replacements for electronics and sensors.
Easy-to-read LCD/LED interface with built-in diagnostic information makes service easier.
SmartSense technology accurately adjusts chlorine output when the pump is off or the pool cover is detected as on.
A redesign conductivity sensor provides more accurate salt level readings.
Acid cleaning kit provided with all units makes routine cleaning easier.
Regular cycling helps to prevent calcium and scale buildup to maximize cell life.
Redesigned module incorporates conductivity and temperature sensors, as well as flow switch, for easy replacement.
IC15 Production Capacity @ 0.6 LBS (per day at 100%).
Pentair IntelliChlor Plus & LT Brochure
