Description

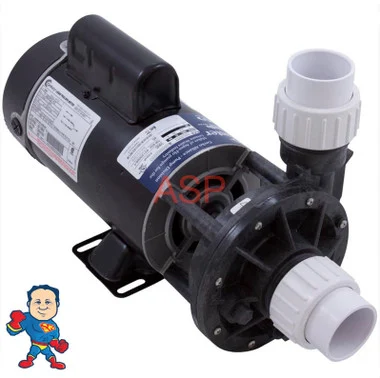

This Pump is a 48Frame 230V 2 Speed with a 2.0 HP Wet End that features a 1 1/2″ x 1 1/2″ inlet and outlet Wet End that measures about 2 5/16 across the threads… High speed Amperage is 8.5 and low speed is 2.8 Amps..
Complete Pump Type
| Portable Spa Pump | |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 6,9 o`clock |
| Pump to Motor Foot Types | 15 |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 1-7/8″id, 2-7/16″od |
| Suction Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2″ |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 1-7/8″id, 2-7/16″od |
| Discharge Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2″ |
| Horsepower | 2.0hp |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 8.5A/2.8A |
| Manufacturer | AquaFlo/Gecko |
| Pump Model | Flo-Master FMHP |
| Manufacturer Impeller Number | 91693700 |
| Volute Fastening Type | 8 Screws |
| Volute/Sealplate Number | 92770501 |
