Description

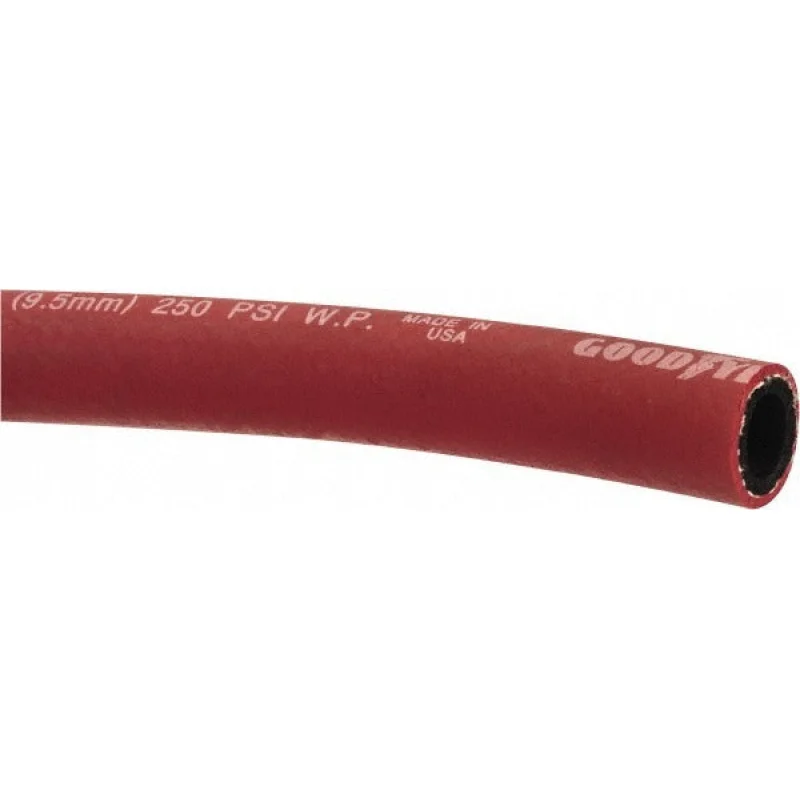

The CONTINENTAL CONTITECH 20025994 is a push-on style air hose designed for compressed air service in demanding shop and field environments. With a 3/8 inch inside diameter and a 250 psi working pressure rating, this hose handles the pressures typical of pneumatic tool supply lines and air distribution systems. Constructed from synthetic rubber, it maintains flexibility across a temperature range of -20 to 190 degrees F, making it suitable for both cold-weather outdoor use and warm mechanical room environments. The hose ships in a 500-foot coil and is priced and cut in 1-foot increments, with a 25-foot minimum cut length. Licensed trades and shop maintenance staff are the primary installers.
This hose is used wherever a push-on air line connection is needed without threaded fittings at the point of cut. Typical applications include compressed air distribution in HVAC mechanical rooms, plumbing shops, automotive service bays, and light industrial facilities. The cut-to-length format allows installers to size runs precisely and reduce waste on custom pneumatic tool drops, air-powered control actuators, and general compressed air distribution lines.
Key Features
- 3/8 inch inside diameter for standard pneumatic tool and air line applications
- 250 psi working pressure rating for reliable shop-air service
- Synthetic rubber construction provides durability and temperature flexibility
- Service temperature range of -20 to 190 degrees F
- 0.65 inch outside diameter for push-on fitting compatibility
- Available cut-to-length from a 500-foot coil in 1-foot increments with 25-foot minimum
Compatibility
Designed for use with standard push-on style air fittings sized for 3/8 inch ID hose in compressed air service applications.
Installation Notes
Installation is performed by licensed pipefitters, plumbers, or qualified maintenance technicians. Depressurize and lock out the air supply before cutting or connecting this hose. Use a clean, straight cut with a hose cutter to ensure a proper seal with push-on fittings. Verify that the working pressure of all fittings and components in the assembly meets or exceeds 250 psi before pressurizing the line.
Technical Specifications
- Hose Type: Push-On Air Hose
- Inside Diameter: 3/8 inches
- Outside Diameter: 0.65 inches
- Working Pressure: 250 psi
- Temperature Range: -20 to 190 degrees F
- Material: Synthetic Rubber
- Color: Red
- End Connections: None (cut to length)
- Coil Length: 500 feet
- Minimum Cut Length: 25 feet
- Pricing Increment: 1 foot
- Weight (per foot): 0.12 pounds
Standard Information
- Brand: CONTINENTAL CONTITECH
- Manufacturer Part Number: 20025994
