Description

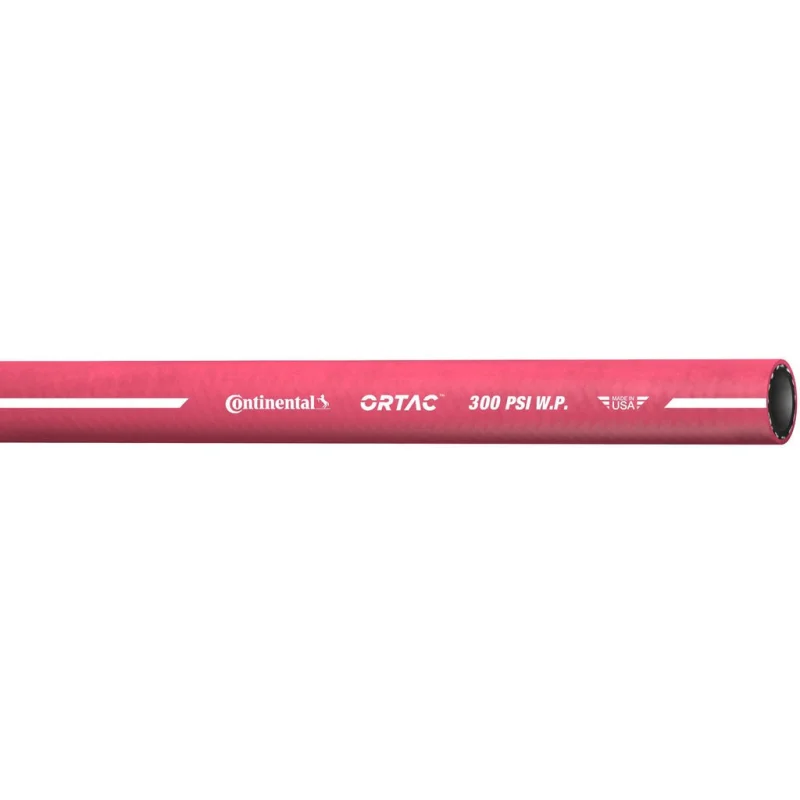

The CONTINENTAL CONTITECH 20026571 is a multipurpose, oil-resistant air hose constructed from synthetic rubber and sold by the linear foot from a 500-foot bulk coil. It carries a 3/4-inch inside diameter and a 300 psi working pressure rating, making it a practical choice for pneumatic tool supply lines, compressor drops, and general shop air distribution. The red outer jacket resists oil exposure and aids visual identification in busy work environments. A licensed plumber, pipefitter, or mechanical contractor typically cuts and assembles this hose to required run lengths on the job site.
This hose is suited for residential and commercial applications where a flexible, bulk-cut air supply line is needed. Typical installations include compressed air drops in service bays, manufacturing facilities, and mechanical rooms. The synthetic rubber construction handles a temperature range of -29 degrees F to 210 degrees F, supporting year-round use in both indoor and outdoor environments. Orders are priced per linear foot with a minimum cut length of 25 feet; the source coil contains 500 feet total.
Key Features
- Oil-resistant synthetic rubber construction withstands petroleum-based contamination common in shop environments
- 3/4-inch inside diameter supports high-volume pneumatic tool and equipment supply
- 300 psi working pressure rating for demanding compressed air service
- Rated for service from -29 degrees F to 210 degrees F
- Red outer jacket provides easy visual identification on the job site
- Sold per linear foot from a 500-foot coil with a 25-foot minimum cut length
Compatibility
Designed as a bulk-cut multipurpose air hose suitable for general compressed air distribution systems in residential, commercial, and light industrial applications. No end connections are included; field-installed fittings are required.
Installation Notes
Installation should be performed by a qualified pipefitter, plumber, or mechanical technician familiar with compressed air system requirements. Depressurize and lock out the air supply before cutting, fitting, or replacing any section of hose. Select end fittings rated at or above the hose working pressure and appropriate for the 3/4-inch ID bore. Consult applicable mechanical codes and the compressor manufacturer guidelines for proper hose routing, support spacing, and fitting torque requirements.
Technical Specifications
- Hose Type: Multipurpose Air Hose
- Material: Synthetic Rubber
- Color: Red
- Inside Diameter: 3/4 inch
- Outside Diameter: 30.2 mm
- Working Pressure: 300 psi
- Maximum Temperature: 210 degrees F
- Minimum Temperature: -29 degrees F
- Connection Type: None (field-installed fittings required)
- Total Coil Length: 500 feet
- Minimum Cut Length: 25 feet
- Sold In: 1-foot increments
- UNSPSC Code: 40142009
Standard Information
- Brand: CONTINENTAL CONTITECH
- Manufacturer Part Number: 20026571
