Description

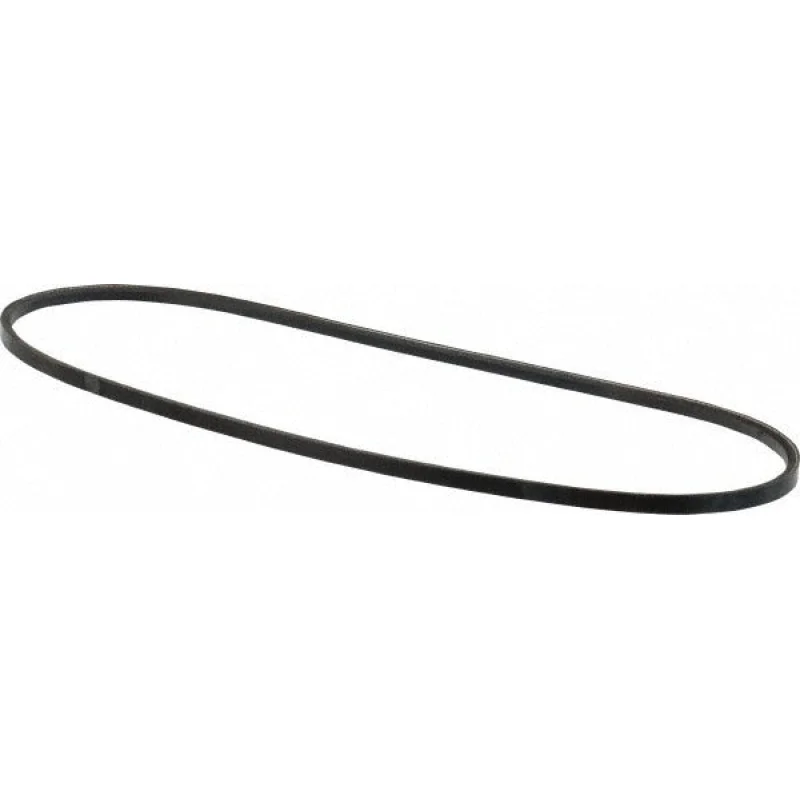

The CONTINENTAL CONTITECH 20070146 is a fractional horsepower cogged V-belt designed for light-duty power transmission applications across HVAC, refrigeration, and general mechanical equipment. Designated belt number 3L410, this belt features a 3L section profile with a 41.0 inch outside length and a 40.30 inch internal length. Constructed from high traction rubber, it resists abrasion and ozone degradation, making it well suited for both indoor mechanical rooms and exposed outdoor equipment. Rated for a maximum working temperature of 140 degrees C and a minimum working temperature of -40 degrees C, it handles wide thermal swings without hardening or cracking. HVAC technicians and mechanical service professionals are the primary installers.
This belt is commonly used in residential and light commercial HVAC systems, evaporative coolers, fan assemblies, blower drives, and small motor-driven equipment that use fractional horsepower V-belt drives. The 3L section, also known as the fractional horsepower (FHP) profile, fits standard FHP sheaves and pulleys. The cogged design reduces bending resistance, which improves efficiency and extends belt life on small-diameter pulleys typical in residential air handling and refrigeration applications.
Key Features
- Cogged construction reduces flex fatigue and heat buildup on small-diameter pulleys
- High traction rubber compound for reliable grip and power transfer
- Abrasion resistant and ozone resistant for long service life
- Wide temperature range: -40 degrees C minimum to 140 degrees C maximum working temperature
- 3L section (fractional horsepower profile) with 41.0 inch outside length and 40.30 inch internal length
Compatibility
Designed as an OEM-style replacement for fractional horsepower V-belt drives using the 3L section profile. Cross-reference belt number 3L410 when sourcing replacements for residential HVAC, blower, and fan drive applications.
Installation Notes
Installation is typically performed by HVAC technicians or mechanical service professionals. Before replacing the belt, de-energize the equipment and lock out the power source per applicable LOTO procedures. Loosen the motor mount or idler to relieve tension before removing the old belt, and re-tension according to the equipment manufacturer’s deflection specification. Never use tools to force the belt over sheave flanges, as this can damage the belt cords.
Technical Specifications
- Belt Number: 3L410
- Belt Section: 3L
- Belt Style: Fractional Horsepower V-Belt
- Belt Type: Cogged
- Outside Length: 41.0 inches
- Internal Length: 40.30 inches
- Material: High Traction Rubber
- Maximum Working Temperature: 140 degrees C
- Minimum Working Temperature: -40 degrees C
- Resistance Features: Abrasion Resistant, Ozone Resistant
- Weight: 0.13 pounds
Standard Information
- Brand: CONTINENTAL CONTITECH
- Manufacturer Part Number: 20070146
