Description

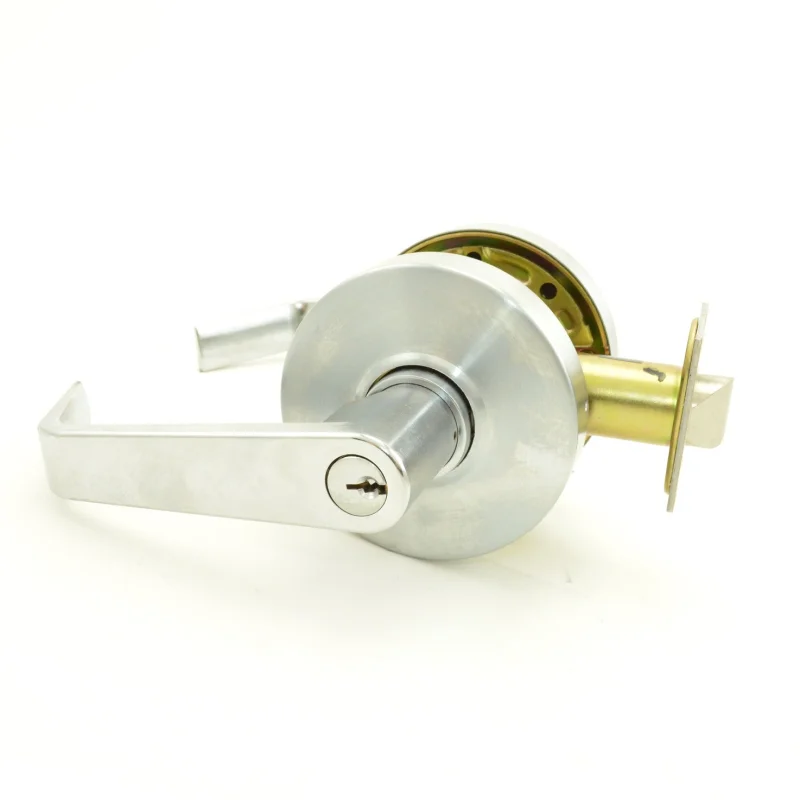

The DEXTER COMMERCIAL C1000STRMR626KDC is a Grade 1 storeroom-function cylindrical lock designed for commercial door hardware applications. It features a clutching lever mechanism with a C keyway, a 2-3/4 inch backset, and a 1-1/8 inch face that accommodates standard commercial door prep. The unit ships with an ANSI-compliant strike plate and is finished in satin chrome (626). Grade 1 construction meets the highest ANSI/BHMA performance classification for cycle life, torque resistance, and finish durability, making it appropriate for high-traffic commercial and institutional environments.
This lock is suited for storeroom or closet functions where the outside lever is always locked and can only be opened by key, while the inside lever remains free-egress at all times. Typical install scenarios include storage rooms, utility closets, server rooms, and light institutional spaces. The clutching lever design protects the internal mechanism from torque-based forced-entry attempts. Licensed locksmiths and commercial door hardware installers are the primary trade for supply, fitting, and keying this product.
Key Features
- ANSI Grade 1 rating for maximum cycle life and torque resistance in commercial applications
- Storeroom function: outside lever always locked, key-controlled entry, free egress from inside
- Clutching lever mechanism resists forced-entry torque attacks
- C keyway for controlled key distribution compatibility
- 2-3/4 inch backset fits standard commercial door preparation
- Includes ANSI-compliant strike plate; satin chrome 626 finish
Compatibility
Designed as an OEM-style replacement or new-install cylindrical lock for standard commercial doors prepared for Grade 1 cylindrical locksets with a 2-3/4 inch backset and 1-1/8 inch face plate.
Installation Notes
Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Ensure the door is properly prepped with the correct bore diameter and backset before mounting the chassis. Verify ANSI strike alignment with the door frame before final fastening. Follow local building and fire code requirements for egress hardware when selecting and installing storeroom-function locks.
Technical Specifications
- Function: Storeroom (outside lever locked, key entry, free egress inside)
- Grade: ANSI Grade 1
- Backset: 2-3/4 inches
- Face Width: 1-1/8 inches
- Keyway: C Keyway
- Finish: Satin Chrome (626)
- Strike: ANSI Strike included
- Length: 8.3 inches
- Width: 7.1 inches
- Height: 3.9 inches
- Weight: 4.45 pounds
- Sales Unit: Each (EA)
Standard Information
- Brand: DEXTER COMMERCIAL
- Manufacturer Part Number: C1000STRMR626KDC
