Description
DISCONTINUED – see 10-0121FS-k

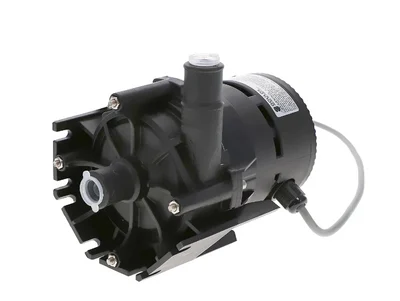

Dimension One Circ Pump D1 Laing 01512-320E-3P with 3 pin flow switch cable and AMP connector.
230V, E10, AMP connector and 3-Pin flow switch cable
The version of the 230v circ pump with flow switch has been discontinued. This one has a pressure switch wire with 3 pins
To make the repair with available parts, installer will need to use a flow switch Tee on the heater line along with pump 01512-321
This version of the pump includes the AMP type connection.
This is the replacement D1 type circ pump with flow switch and plug. 3/4 hose barb plumbing connection.
| Complete Pump Type | Circulation Pump |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | None |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3/4″od |
| Suction Connection Type | Barb (b) |
| Suction Pipe Size | 3/4″ |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3/4″od |
| Discharge Connection Type | Barb (b) |
| Discharge Pipe Size | 3/4″ |
| Motor Amperage/Wattage | 70w |
| Manufacturer | Laing Thermotech |
| Pump Model | E-10 |
| Volute Fastening Type | 4 Bolts 4 Nuts |
Ceramic Bearing Ball and Carbon Bearing Cap:High density ceramic bearing ball and graphite impeller bearing cap designed for high efficiency and long life.
Impeller:Highly efficient, clog resistant open impeller is dynamically balanced with carbon bearing for smooth ultra quiet operation.
Casing:Casing is thermoplastic construction.
Mechanical Seal:Unique patented design has no mechanical seal which is a potential leak path.
Motor:Highly efficient and ultra quiet spherical motor design.
Pump is designed for continuous operation.
All ratings are within working limits of the motor.
Or convert AMP to JnJ by adding an adapter 30-1190-C6
contact us for current availability
