Description

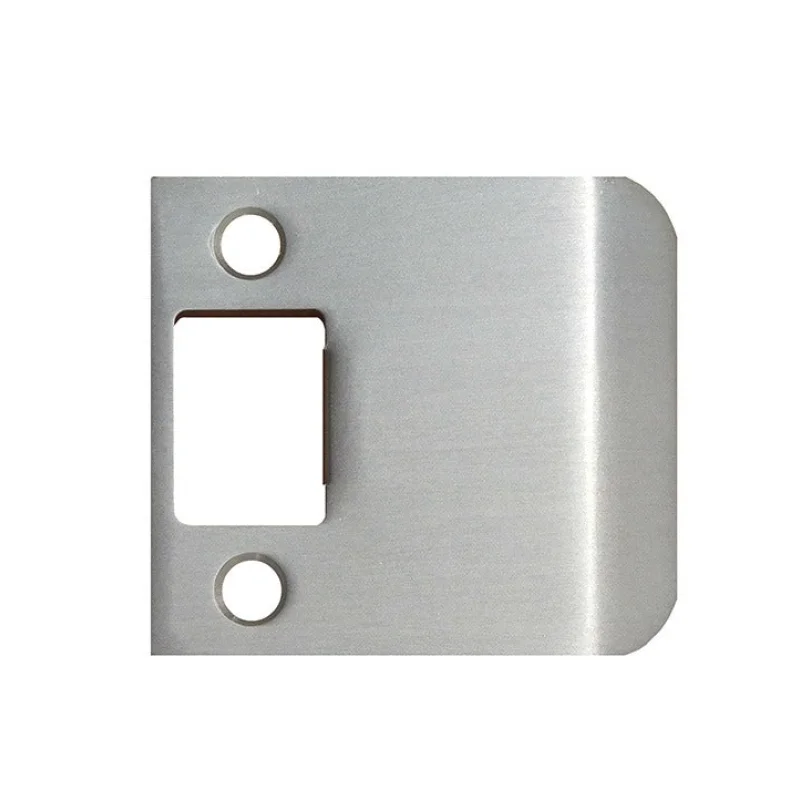

The DON-JO EL115630 is a full lip strike plate designed for commercial and residential door hardware applications. It features a 2-1/4-inch main lip and a 1-1/2-inch extended lip, giving it additional door frame clearance that is commonly required when working with heavier or thicker door stops. Finished in satin stainless steel, the strike resists corrosion and maintains a clean appearance in high-traffic environments. Locksmiths, door hardware installers, and general contractors install this type of strike as part of a complete lockset or latchbolt assembly. It measures 6 inches in length and 4 inches in width, with a profile height of 0.5 inches, and weighs 0.1 pounds.
This full lip strike is suited for use in standard door frame applications where a conventional short lip strike does not provide adequate latch engagement or where the door stop profile requires an extended lip to align properly with the latchbolt. It is sold individually and is commonly stocked in case quantities of 10. Typical applications include entry doors, office doors, and interior passage doors in both new construction and retrofit projects.
Key Features
- 2-1/4-inch full lip with 1-1/2-inch extended lip for increased frame clearance
- Satin stainless steel finish for corrosion resistance and durability
- Low-profile height of 0.5 inches for flush frame installation
- Compact footprint at 6 inches length by 4 inches width
- Lightweight at 0.1 pounds for easy handling and installation
- Sold individually with case quantity of 10 available
Compatibility
Designed as an OEM-style replacement or new-installation strike for standard residential and commercial door frame assemblies requiring a full lip strike configuration with an extended lip.
Installation Notes
Installation is typically performed by a licensed locksmith, door hardware installer, or qualified contractor. Power down any associated access control or electric strike components before beginning work. Ensure the latchbolt aligns correctly with the strike lip before fastening to avoid binding or premature wear. Follow applicable building codes and manufacturer door hardware guidelines for proper mortise depth and fastener selection.
Technical Specifications
- Lip Length: 2-1/4 inches
- Extended Lip: 1-1/2 inches
- Overall Length: 6 inches
- Width: 4 inches
- Height: 0.5 inches
- Weight: 0.1 pounds
- Finish: Satin Stainless Steel
- Sales Unit: Each
- Case Quantity: 10
Standard Information
- Brand: DON-JO
- Manufacturer Part Number: EL115630
