Description

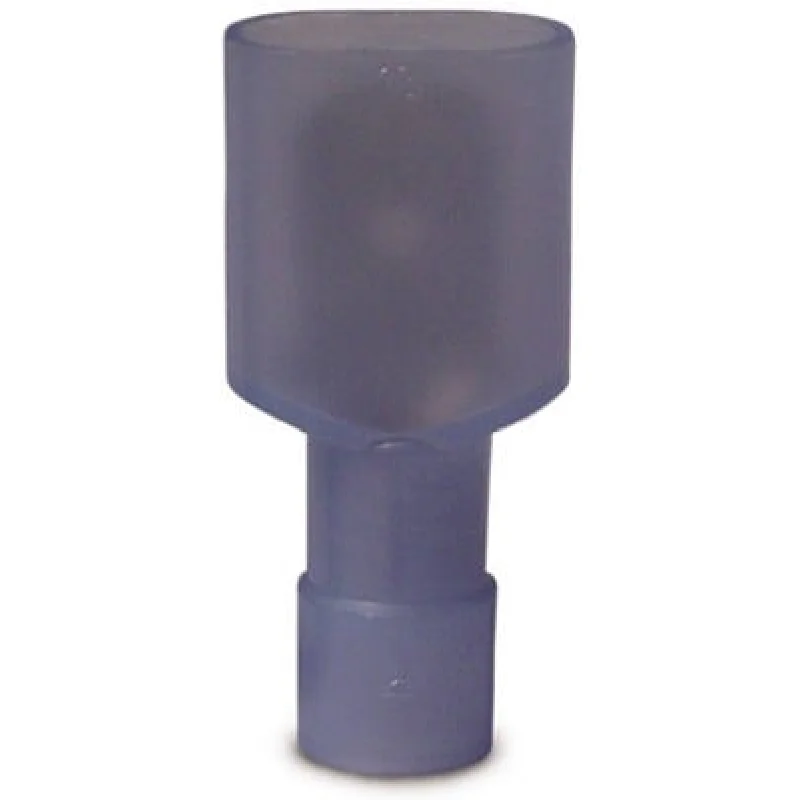

The ECM INDUSTRIES LLC 10-153F is a fully insulated, solderless female disconnect terminal designed for fast, reliable electrical connections in the field. Supplied in a 100-piece pack, each terminal accepts a 0.250-inch tab and is rated for 16-14 AWG wire. The full insulation sleeve protects against accidental shorts and keeps connections secure in tight panel or junction-box environments. Electricians, HVAC technicians, and controls installers use this style of terminal when making quick-disconnect wiring connections to components such as relays, contactors, capacitors, and control boards without the need for soldering equipment.
This disconnect terminal is suited for residential and light commercial electrical and HVAC wiring applications. It is commonly used when terminating 16 AWG or 14 AWG conductors to spade-tab equipment terminals. The solderless, crimp-style design allows for rapid installation during new equipment wiring, service calls, or panel modifications. The 100-piece pack quantity is practical for service vans, shop stock, or larger wiring jobs where multiple terminations are needed.
Key Features
- Fully insulated sleeve reduces risk of accidental shorts in congested wiring areas
- Solderless crimp design requires no soldering equipment for fast field termination
- Accepts 0.250-inch tab connectors common on relays, contactors, and control components
- Compatible with 16-14 AWG wire range for versatile use across common circuit sizes
- 100-piece pack supports high-volume installs and service stock replenishment
Compatibility
Designed as an OEM-style replacement and general-use crimp terminal for residential and light commercial electrical wiring applications requiring a fully insulated female disconnect with a 0.250-inch tab and 16-14 AWG wire range.
Installation Notes
Installation is typically performed by licensed electricians or HVAC technicians following applicable NEC guidelines. De-energize and lock out the circuit before terminating or replacing any wiring connections. Use a calibrated crimp tool rated for insulated terminals to ensure a secure, gas-tight crimp on the conductor. Avoid using pliers or non-rated tools, as improper crimping can result in loose connections or conductor damage.
Technical Specifications
- Wire Range: 16-14 AWG
- Tab Size: 0.250 inches
- Gender: Female
- Insulation: Fully Insulated
- Termination Type: Solderless Crimp
- Package Quantity: 100 pieces
- Weight: 1.5 pounds
Standard Information
- Brand: ECM INDUSTRIES LLC
- Manufacturer Part Number: 10-153F
