Description

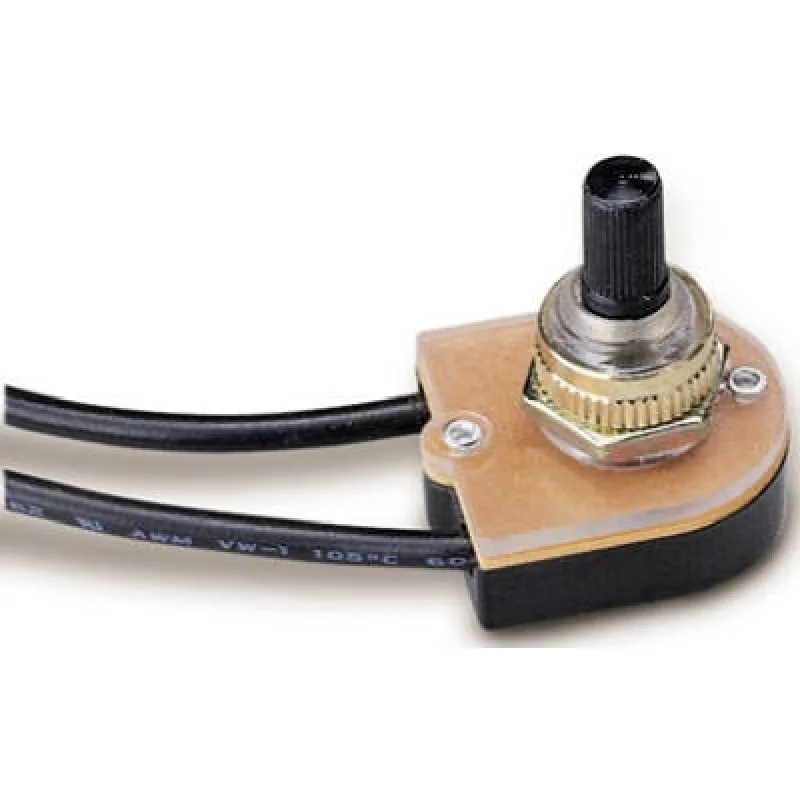

The ECM INDUSTRIES LLC GSW-69 is a bright brass rotary switch rated for single pole single throw (SPST) operation in on/off switching applications. Rated at 6 amps and 125 volts, this switch ships with 6-inch wire leads pre-attached for straightforward wiring. The recommended mounting hole diameter is 13/32 inches. Its brass finish and carded retail packaging make it well suited for both service replacement and new installation work across residential and light commercial settings.
This rotary switch is used in low-voltage lighting circuits, appliance controls, HVAC equipment panels, and similar single-pole switching applications. The 6-inch leads provide enough wire length to reach terminal blocks or wire nuts in standard enclosure depths without splicing. Electricians and HVAC technicians are the primary installers. It is sold in a package quantity of five units, making it practical to stock for service calls.
Key Features
- Single pole single throw (SPST) on/off operation for simple circuit control
- Rated 6 amps at 125 volts for residential and light commercial circuits
- 6-inch pre-attached wire leads reduce field wiring time
- Bright brass finish provides corrosion resistance and a clean appearance
- Mounting hole fits 13/32-inch diameter openings for standard panel cutouts
- Packaged and carded in quantities of five for service stock convenience
Compatibility
Designed as an OEM-style replacement rotary switch for residential and light commercial equipment requiring a single pole on/off switching device with a 13/32-inch panel mount diameter and 6-amp, 125-volt rating.
Installation Notes
Installation is typically performed by a licensed electrician or qualified HVAC technician. De-energize the circuit and confirm zero voltage with a meter before handling any connections. Ensure the panel cutout matches the 13/32-inch mounting hole requirement before securing the switch. Follow applicable NEC guidelines for switch wiring and enclosure requirements.
Technical Specifications
- Switch Type: Single Pole Single Throw (SPST)
- Function: On/Off
- Voltage Rating: 125 volts
- Amperage Rating: 6 amps
- Wire Lead Length: 6 inches
- Mounting Hole Diameter: 13/32 inches
- Finish: Bright Brass
- Package Quantity: 5
- Weight: 0.5 pounds
- Unit of Measure: EA
Standard Information
- Brand: ECM INDUSTRIES LLC
- Manufacturer Part Number: GSW-69
