Description
Currently unavailable , see 3720821-1D which is a quieter 2HP, 56 frame, larger motor replacement pump that also operates at 230v, 8 amps high speed, 3 amps low speed with 2 inch plumbing. If using as a 1-speed pump, only connect high speed terminal

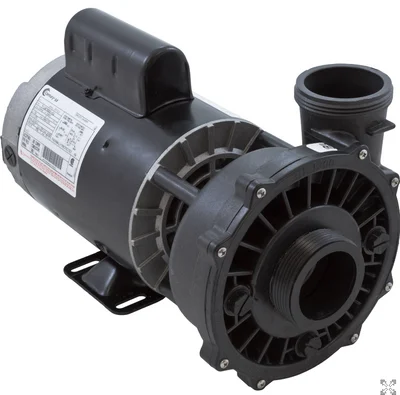

Emerald Spa Pump 2HP, 2-speed 50009640 for Emerald and Great Lakes spas. Includes AMP cord (31″) or you can re-use existing cord and keep the supplied cord as a spare.
230 volt, 60HZ 2-speed spa pump by Waterway made for use in select model Emerald and Great Lakes hot tubs that use this 2HP, 2-speed pump.
56 large frame pump for quieter operation.
- Includes Wet End and Motor assembled – U.S. Motor and Waterway wet end.
- Includes AMP cord (31″)
- 2HP pump
- 2-Speed Pump – Main Pump
- 8 amps hi speed
- 3 amps low speed
- 230V
- 56 Frame pump motor
- Viton Seal
- California Title 20 Compliant
- Attaches to 2 inch inner diameter plumbing on both suction and discharge sides of pump (measures 3 1/16″ across the pump threads)
This pump replaces the main pump (LX) that is used for filtration and heating on select Great Lakes and Emerald Spas (replaces Pump 1 – main pump).
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 4,6,9 o`clock |
| Suction Style | Center |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2″ |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2″ |
| Horsepower | 2.0hp |
| Motor Frame | 56 Frame Thru-Bolt |
| Motor Amperage/Wattage | 8.0/3.0A |
Get all your factory original Emerald spa parts at Hot Tub Outpost.
We also offer a 2-speed, 3HP Pump used in some models as the primary while in other models as the secondary pump – see 50008340 .
Need a rubber pump motor base? See 319-0019.
Need 2 inch pump unions with o-rings? See 0602-20.
Need just the o-ring, or spare o-rings? See O-43 .
