Description

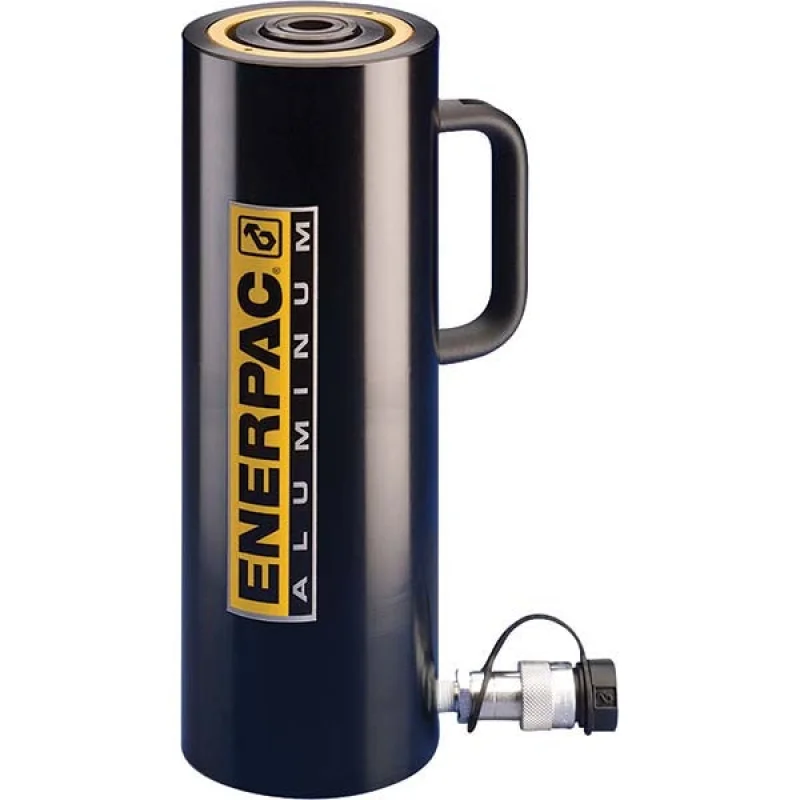

The ENERPAC RAC506 is a compact hydraulic cylinder designed for single-acting operation in space-constrained industrial and mechanical applications. Built with a black anodized aluminum body, this cylinder delivers corrosion resistance and reduced weight compared to steel alternatives while maintaining structural rigidity under hydraulic load. The base mounting hole configuration allows for secure, fixed positioning in tooling, fixtures, jigs, and production equipment. Installation and service is typically performed by hydraulic system technicians and millwrights working in manufacturing, maintenance, or fabrication environments.
This cylinder is suited for applications where a low-profile, single-acting hydraulic actuator is required and a fixed base mount is preferred for stability. Typical use cases include press tooling, clamping fixtures, forming dies, and equipment where controlled linear force must be applied in one direction with spring or gravity return. The black anodized aluminum body makes it appropriate for environments where weight savings and corrosion resistance are priorities without sacrificing performance.
Key Features
- Single-acting hydraulic actuation for controlled one-direction force output
- Base mounting hole design enables secure, fixed installation in tooling and fixtures
- Black anodized aluminum body provides corrosion resistance and reduced component weight
- Compact form factor suited for space-restricted mounting environments
- Package quantity of 1 for straightforward single-unit procurement
Compatibility
Designed as an OEM-style compact hydraulic cylinder for single-acting hydraulic circuits requiring a base mounting hole configuration in light-duty to medium-duty industrial applications.
Installation Notes
Installation should be performed by a qualified hydraulic technician familiar with single-acting cylinder circuits. Depressurize the hydraulic system fully and relieve all stored pressure before removing or installing any hydraulic component. Ensure mounting surfaces are flat and fasteners are rated for the cylinder’s operating load. Follow all applicable hydraulic safety standards and equipment manufacturer guidelines during installation and commissioning.
Technical Specifications
- Actuation Type: Single Acting
- Body Material: Black Anodized Aluminum
- Mount Type: Base Mounting Hole
- Weight: 24.5 pounds
Standard Information
- Brand: ENERPAC
- Manufacturer Part Number: RAC506
