Description

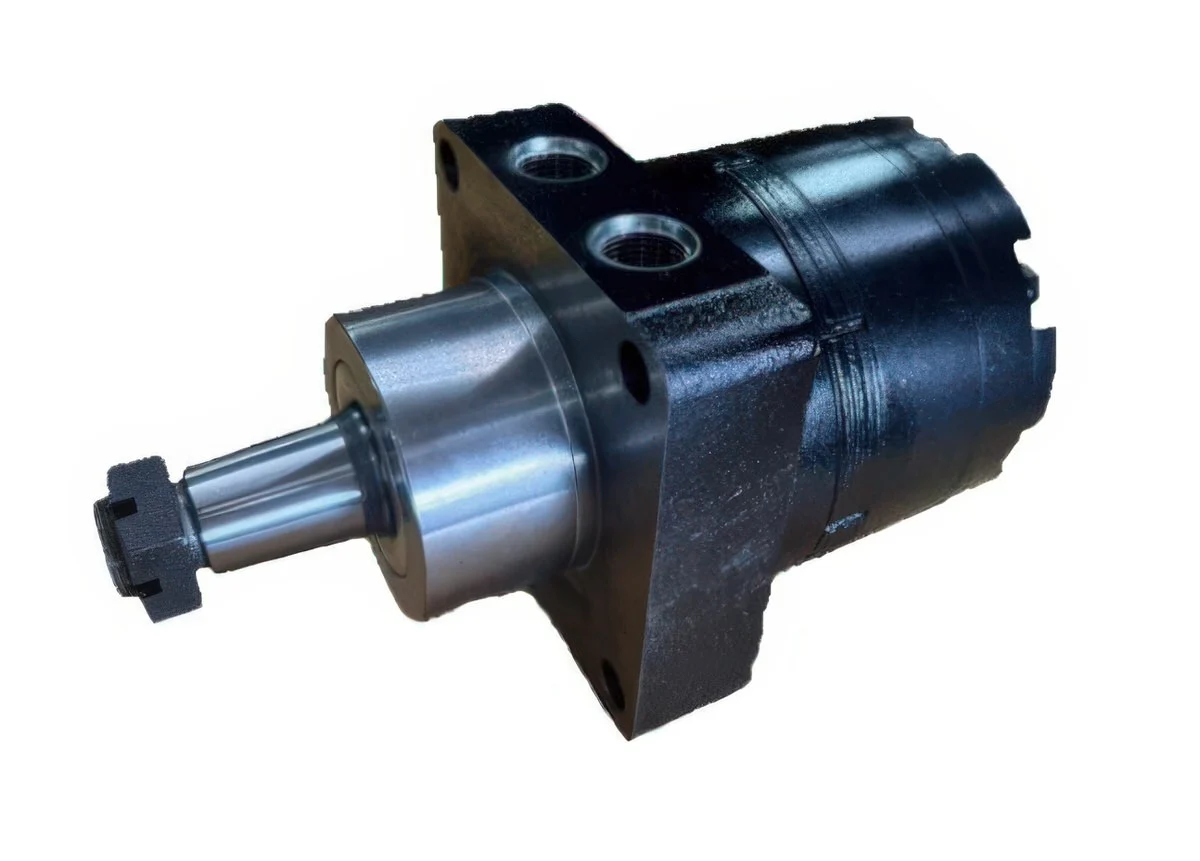

The Fluidyne FM50MAG06B125SBN is a robust orbital motor tailored for a wide range of hydraulic applications. With a displacement of 125 CC per revolution, this high-performance motor is designed to provide exceptional torque and reliability in challenging environments.
Specifications
- Model Number: FM50MAG06B125SBN
- Displacement: 125 CC/Rev
- Mount Type: 6 Bolt Magneto
- Shaft Type: 1.0″ 6B Spline Shaft
- Ports: 7/8-14 Orb Ports
- Width: 10.2MM (0.40″)
- Rotation: Counterclockwise (CCW)
- Pressure Rating: Not specified
Features and Benefits
- High efficiency and durable construction for extended service life
- Versatile mounting configuration with a 6 bolt magneto design
- Easy integration with standard hydraulic systems due to 7/8-14 ORB port compatibility
- 1.0″ spline shaft for reliable power transmission
- Made in the USA, ensuring high quality and performance standards
Applications
- Industrial machinery
- Material handling systems
- Agricultural equipment
- Construction and mobile hydraulic systems
Quality and Certification
The Fluidyne FM50MAG06B125SBN is manufactured in compliance with strict quality standards, reflecting Fluidyne’s commitment to reliability and performance. Each motor undergoes rigorous testing to ensure that it meets industry specifications and performs optimally in all applications.
For technical support and assistance, contact our product specialists at (800) 823-4937
