Description
Product Selection Guide

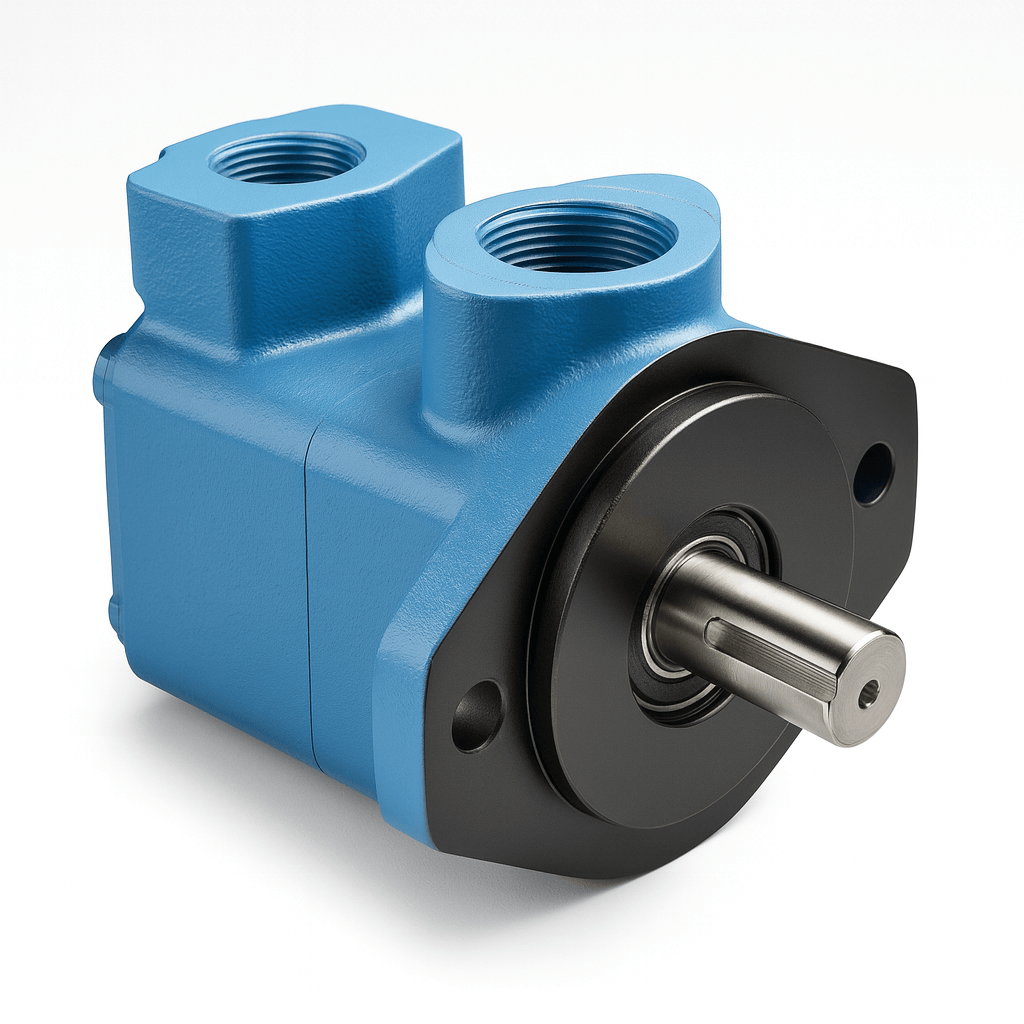

These FluiDyne V10 Series single stage vane pump models are direct Vickers V10 replacements, all sharing the compact SAE ‘A’ 2-bolt flange, displacement of 6.6 cm³/r (0.40 in³/r), 2.1 GPM flow at 1200 RPM, 2500 PSI max pressure, and G1″/G1/2″ BSPP straight thread ports. The key differences among these vane pump models are rotation direction, port position, flow control settings, and relief valve ratings. These distinctions determine suitability for right- or left-handed systems, plumbing orientation, system safety, and fine-tuning flow for specific hydraulic circuits.
