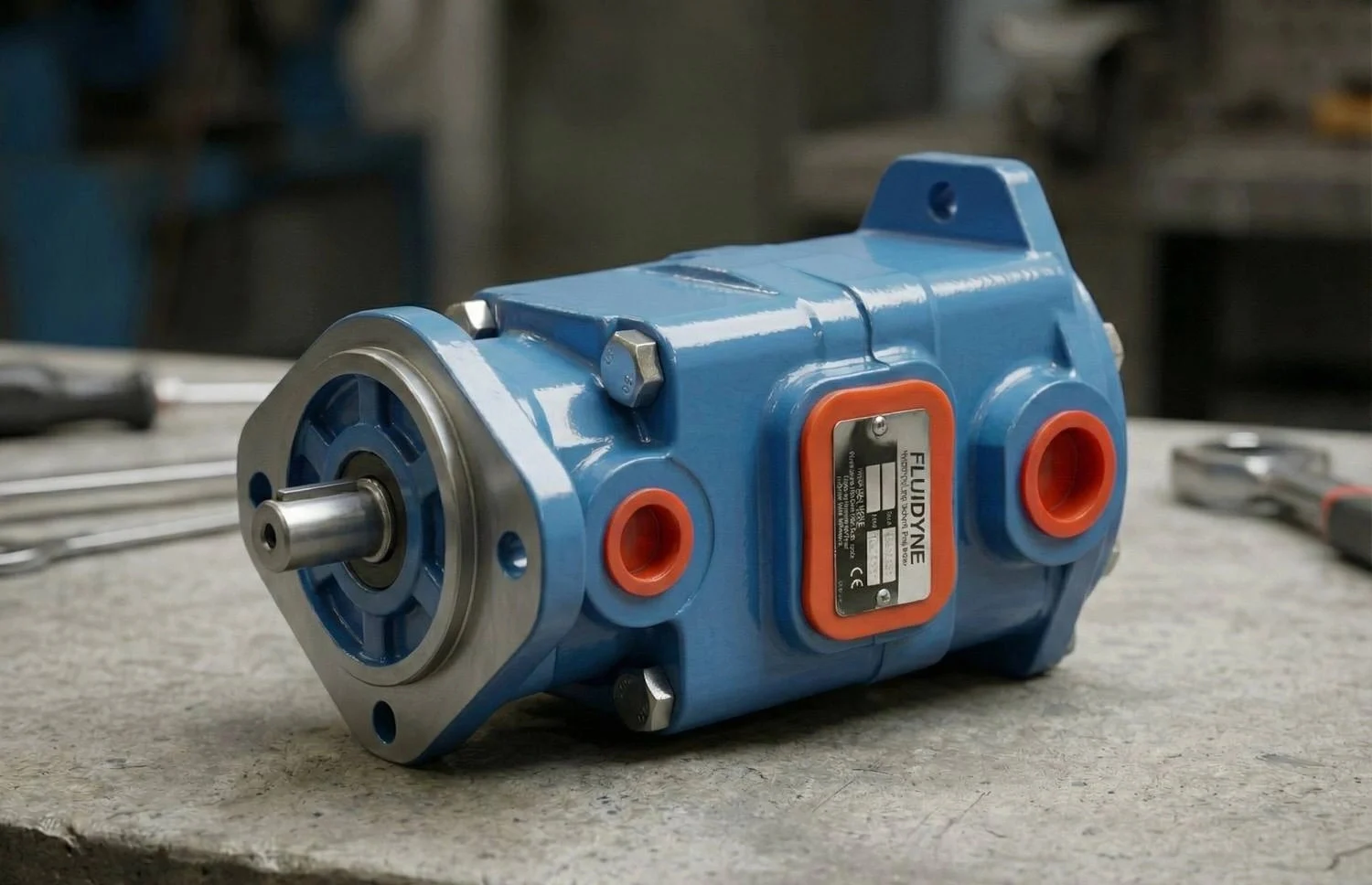

The V20F1P8P18D8H22R from Fluidyne replaces Vickers V20F1P8P18D8H22R units in systems requiring 26.6 cm³/r (1.62 in³/r) displacement and up to 2500 PSI operating pressure. For higher displacement, see V20F1P11P38D6G22R – FluiDyne V20 Pump. This pump is 100% interchangeable with the original Vickers replacement pumps model and follows SAE J744 mounting standards for seamless installation..
- Mounting Pattern: SAE ‘A’ 2-bolt
- Inlet Port: G1″ BSPP
- Outlet Port: G1/2″ BSPP
