Description

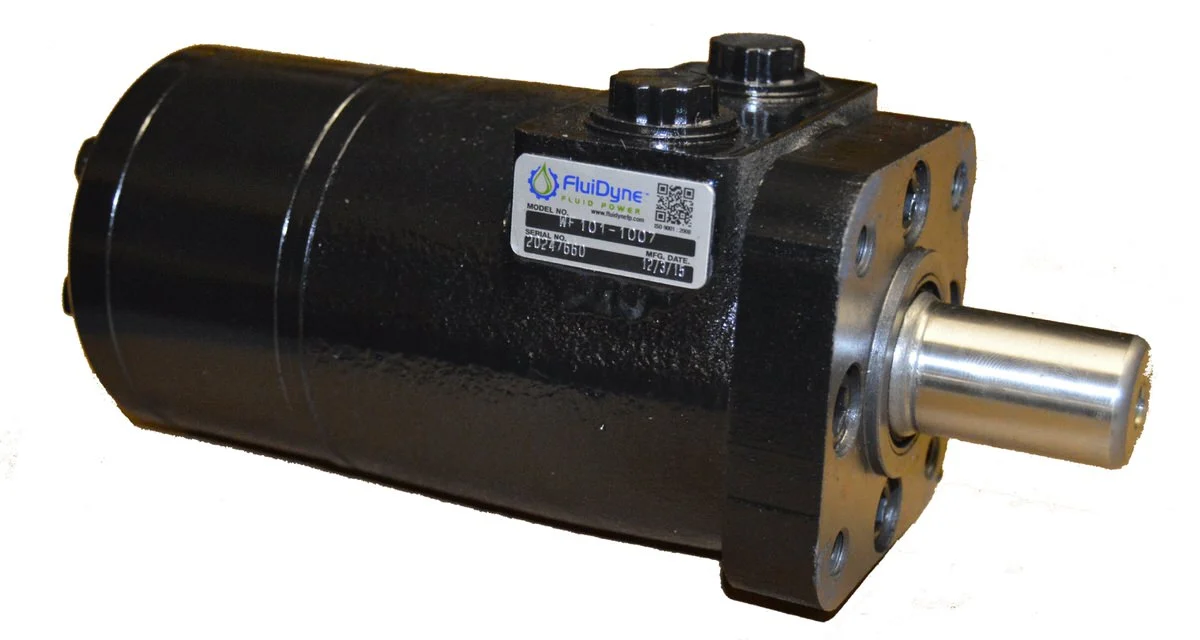

The Fluidyne WF101-5022 is an exceptional orbital motor designed for reliability and efficiency in hydraulic systems. Engineered with precision, this motor is ideal for diverse applications in industrial settings, providing robust performance that meets the demanding needs of hydraulic systems.
Key Features and Benefits
- High displacement of 160 CC for powerful operation
- 4-Bolt SAE A square flange for versatile mounting
- Durable 1″ woodruff keyed shaft for improved torque transfer
- 1/2″ NPTF ports for secure and efficient connection
- No case drain design, making it suitable for varied installation environments
- High-grade Viton seals ensure optimal sealing performance
- Made in USA under stringent quality control standards
Specifications
- Model Number: WF101-5022
- Displacement: 160 CC
- Mount Type: 4-Bolt SAE A Square Flange
- Shaft Type: 1″ Woodruff Keyed Shaft
- Ports: 1/2″ NPTF
- Width: 0.83″ (21MM)
- Pressure Rating: 3000 PSI
- Paint Status: Black Paint Min 2 Mils Thick
- Case Drain: No Case Drain (7/16-20 O’Ring Plugged)
- Special Features: Included Viton Seals
Applications
- Agricultural machinery
- Construction equipment
- Material handling systems
- Marine hydraulic systems
- Industrial hydraulics
Quality and Certification
The Fluidyne WF101-5022 is manufactured in accordance with stringent quality standards, ensuring it meets and surpasses industry requirements for hydraulic motors. Each unit undergoes rigorous testing to guarantee performance consistency and reliability throughout its service life.
For technical support and assistance, please contact our specialists at (800) 823-4937.
