Description

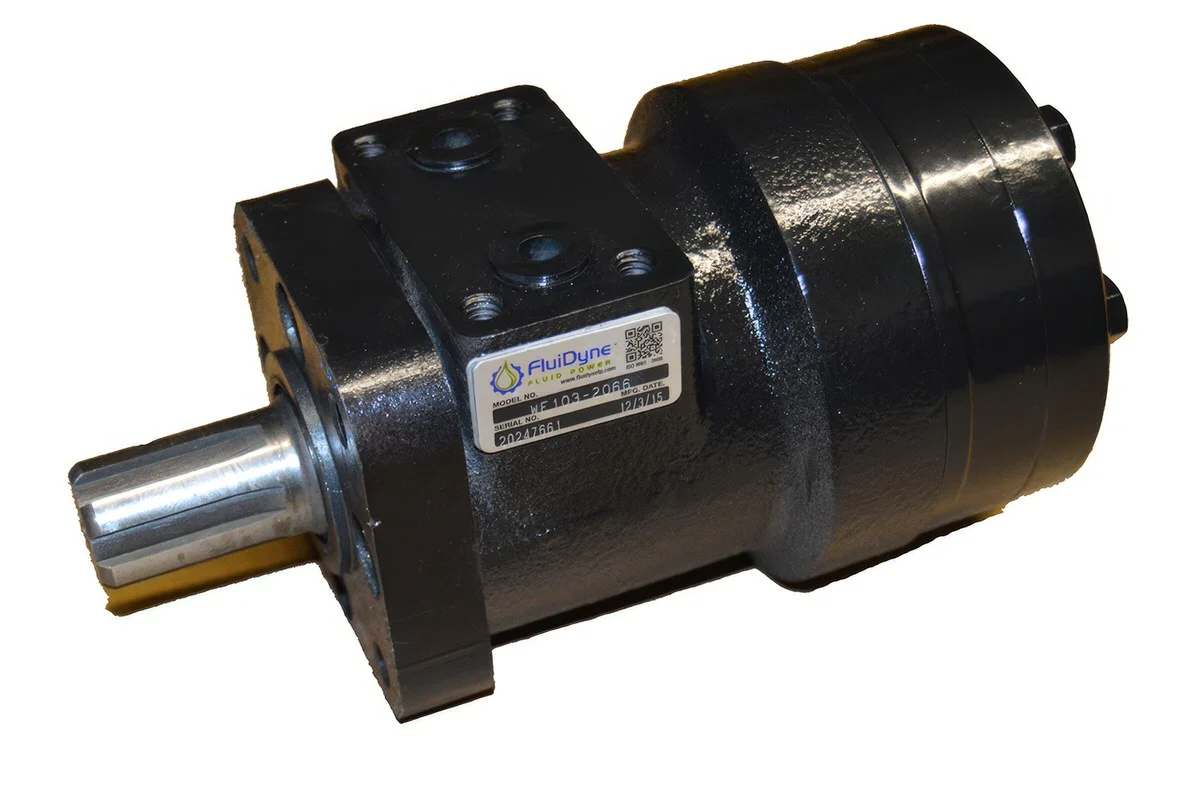

The Fluidyne WF103-1404 is a high-performance orbital motor engineered for precision and versatility in hydraulic applications. This motor features a robust 4-bolt SAE A square flange design, ensuring easy installation and compatibility with a wide range of machinery.
With a displacement of 160 CC, the WF103-1404 provides reliable torque output and operational efficiency. Its 1″ woodruff keyed shaft allows for secure engagement with drive components, vital for applications requiring high reliability and performance.
Specifications
- Model Number: WF103-1404
- Displacement: 160 CC
- Mount Type: 4-Bolt SAE A Square Flange
- Shaft Type: 1″ Woodruff Keyed Shaft
- Ports: 1/2″ NPTF Ports
- Width: 1.24″ (31.5MM)
- Case Drain: No Case Drain (7/16-20 O’Ring Plugged)
- Special Features: Low Speed Valve
Features and Benefits
- 4-Bolt SAE A mounting configuration for easy installation
- High displacement capacity for superior torque
- Woodruff keyed shaft for secure attachment
- Low-speed valve for enhanced performance
- Durable black paint finish for corrosion resistance
- Made in USA under strict quality control
Applications
- Hydraulic machinery
- Material handling equipment
- Agricultural applications
- Construction hydraulic systems
- Mobile machinery
Quality and Certification
The Fluidyne WF103-1404 meets the highest industry standards, ensuring reliability and performance in demanding hydraulic environments. Each motor is produced according to Fluidyne’s stringent quality parameters and undergoes rigorous testing to meet operational expectations.
For technical support and assistance, contact our product specialists at (800) 823-4937
